Aluminium side doors

Aluminium side doors

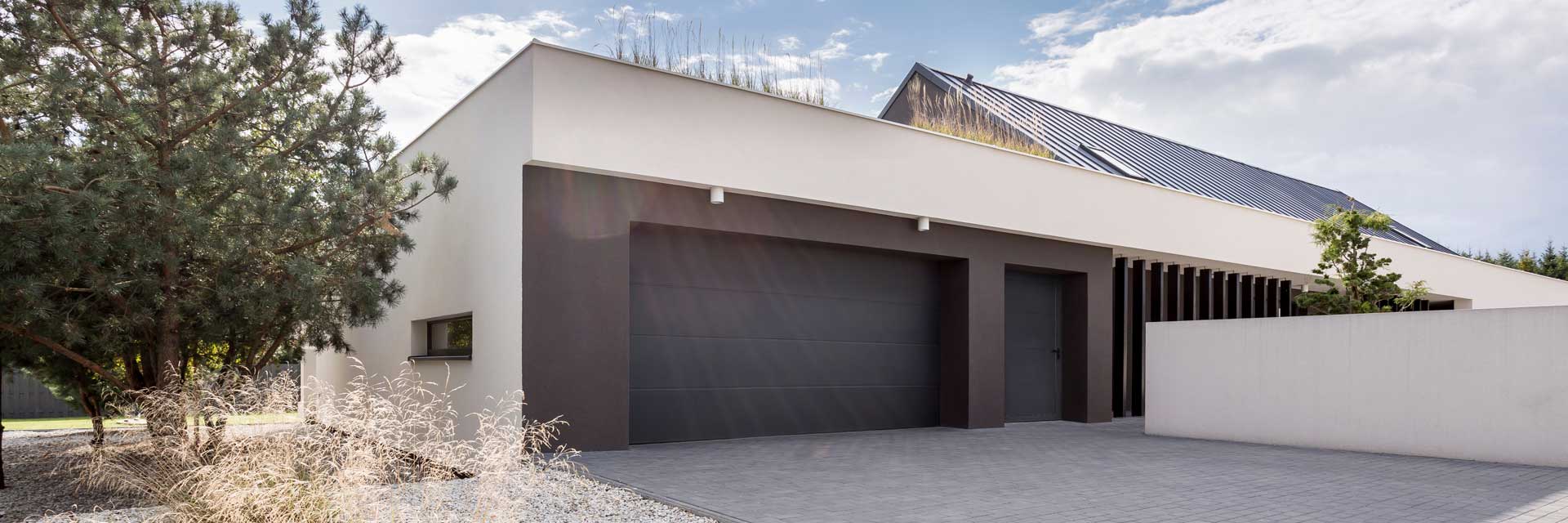

Aluminium side doors with single or triple chamber profiles filled with 40 mm thick insulated panels are an excellent solution, for example, for garages with an additional entrance or other utility rooms. This solution is much more practical than a standard wicket in the garage door itself. It does not weaken the door structure or its thermal performance.

Discover the advantages of aluminium side doors:

Structure

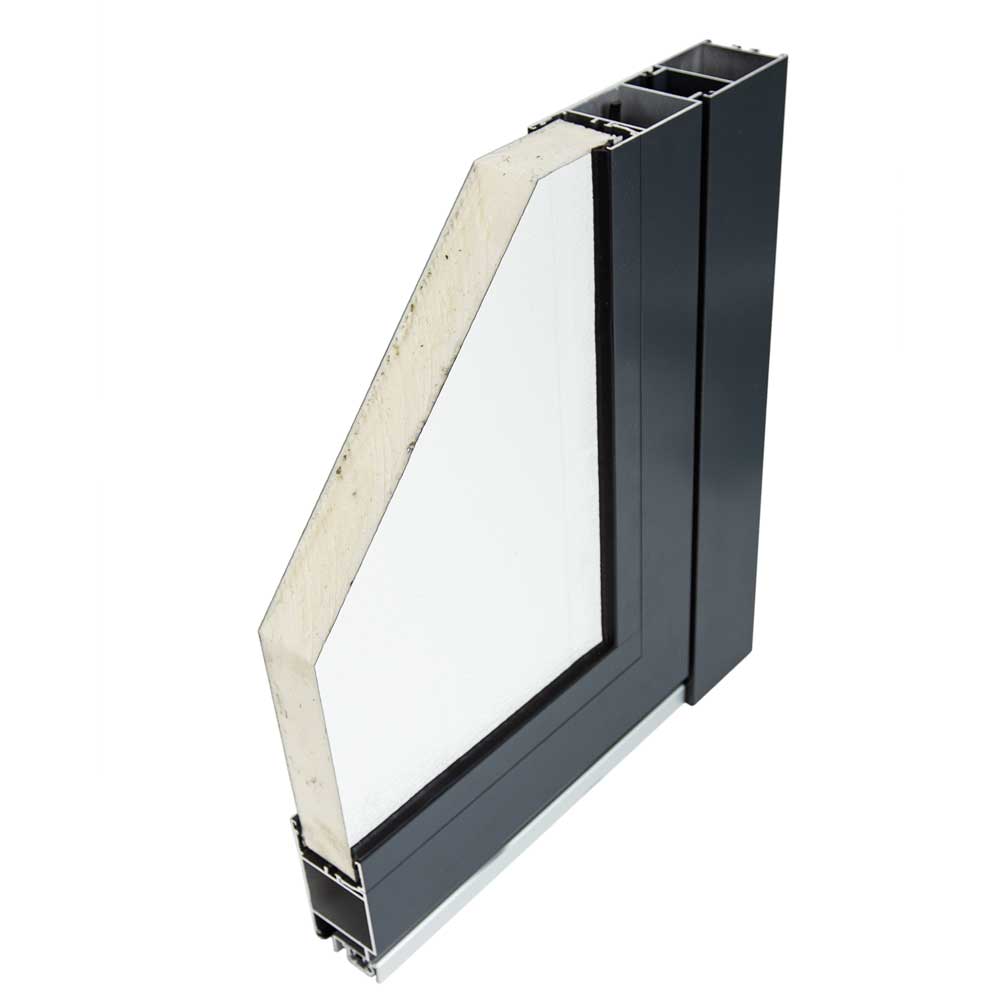

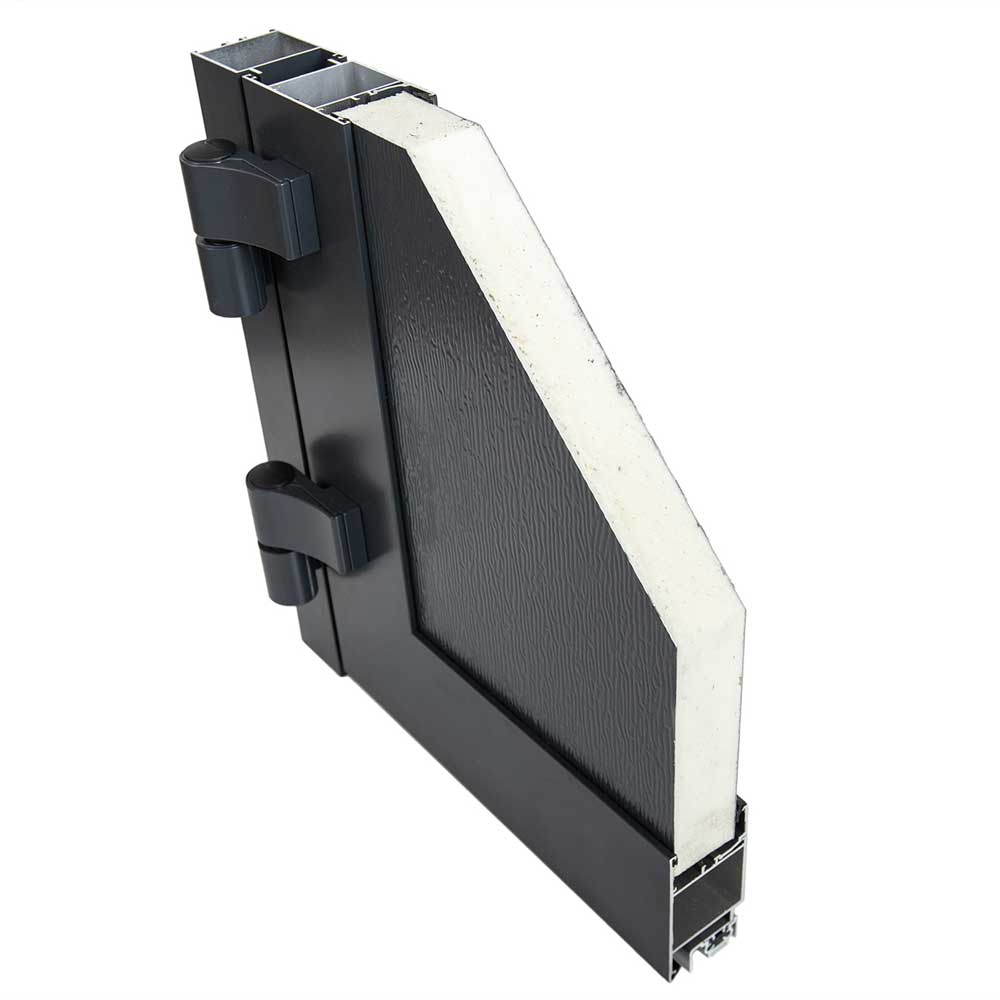

Doors made of system aluminium profiles, single-chamber without thermal insulation, filled with 40 mm thick panels used in the manufacture of garage doors. This system makes it possible to design light, durable and functional products, enabling the production of single and double-leaf doors.

Intended use

This model is intended for unheated rooms. It has no thermal insulation in the leaf framework and the opening frame. Doors are intended for internal and external use in public, industrial, commercial and residential buildings.

Colours

A wide range of colours of the panels used to fill the door makes it go well with the garage door installed next to it that is available in the FAKRO product range. Aluminium elements are powder-coated in one of the standard RAL colours or painted in a wood colour chosen by the customer, namely: golden oak, walnut or winchester.

The infill with door panels offers the option of a smooth or woodgrain structure, depending on individual customer preference and technical requirements of the building. On the inside, the surface is white as standard.

Insulation

Rebate gaskets installed on the door leaf and the opening frame as well as gaskets on the connection of the leaf and the panels filling it stand behind excellent thermal insulation. They also prevent airflow.

Aluminium side doors Aluminium side doors



Discover the advantages of aluminium side doors with a thermal break:

Structure

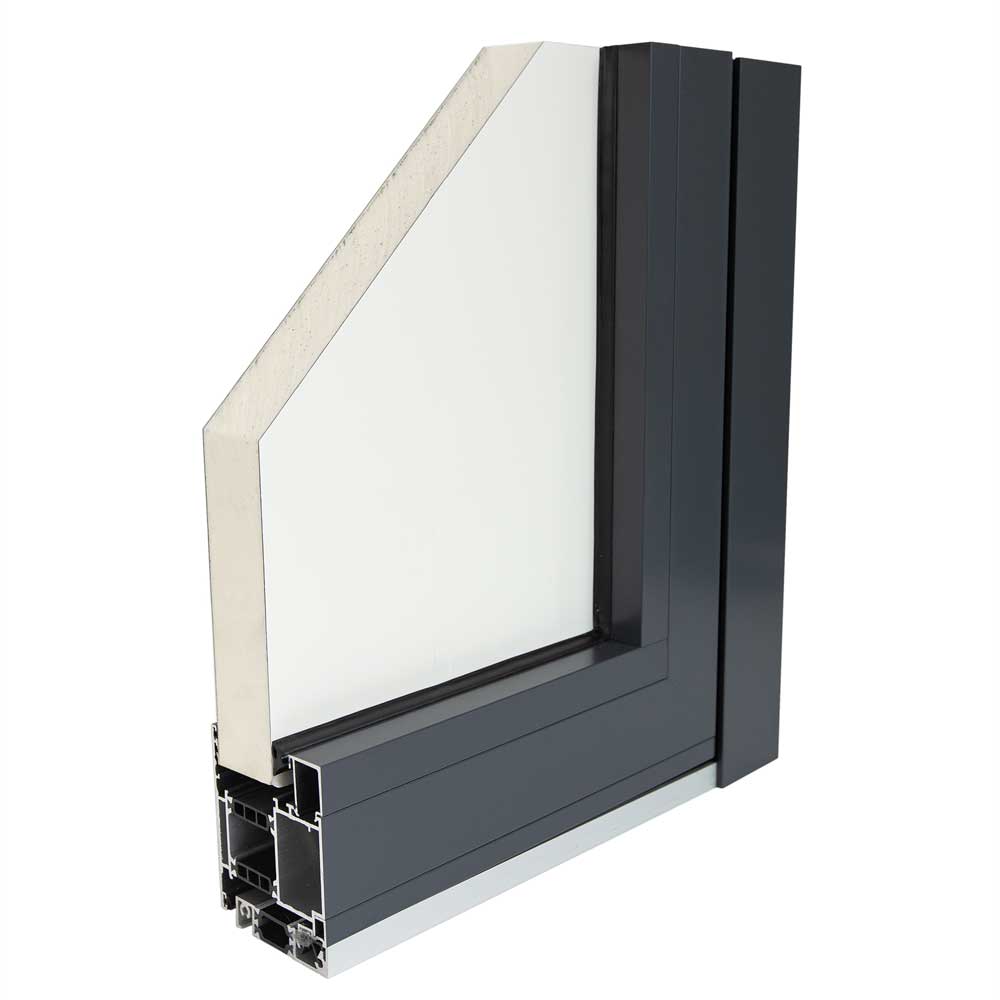

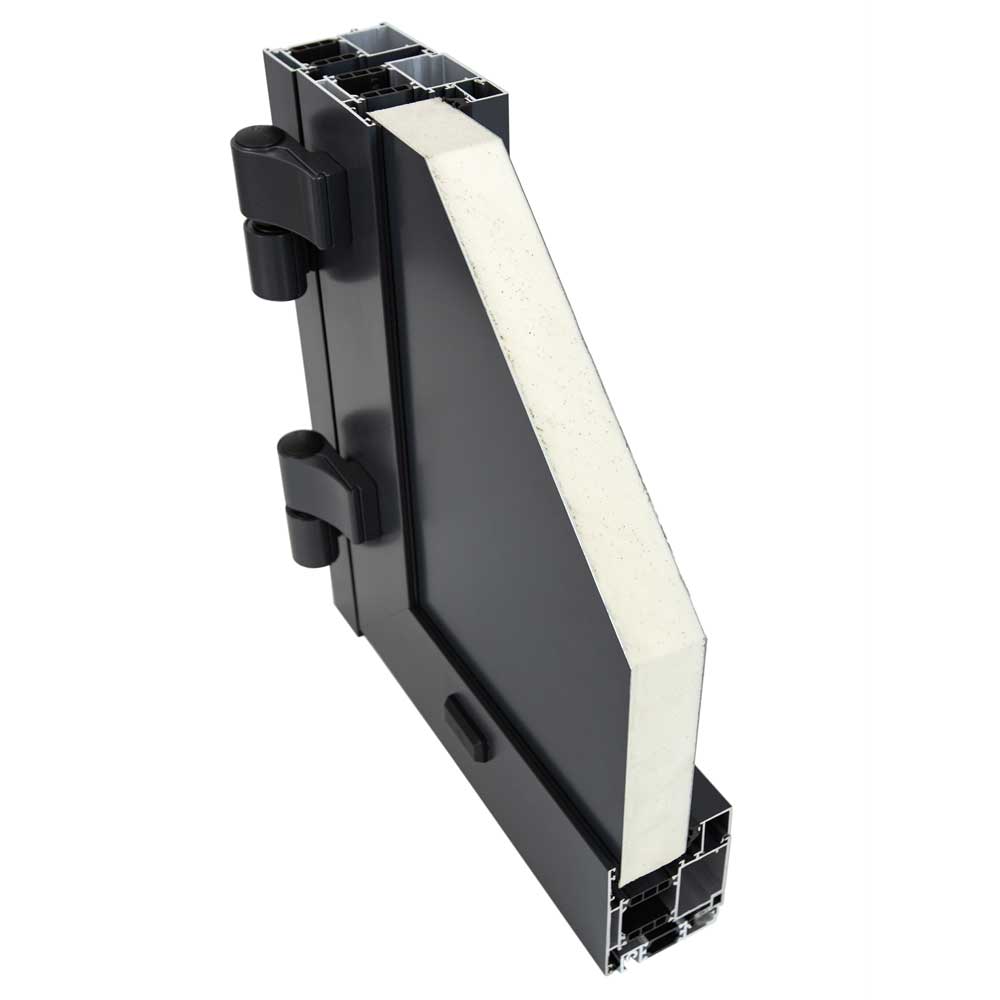

Doors made of system aluminium profiles, triple-chamber with thermal insulation. The application of aluminium structure makes it possible to design durable and functional doors characterised by high insulation performance, at the same time enabling the production of single and double-leaf doors. The infill used in the production process of so-called warm garage doors are 40 mm thick panels made of hard polyurethane foam covered on both sides with steel sheet.

Good anti-burglary properties due to the thicker construction of aluminium profiles and placing the lock further from the outside.

Insulation

The application of special spacers allowed the door to form a thermal barrier in both heated and unheated rooms. They are suitable for internal and external use in residential, public, industrial and commercial buildings.

Rebate gaskets installed on the door leaf and the opening frame as well as gaskets on the connection of the leaf and the panels filling it stand behind excellent thermal insulation. They also prevent airflow.

Colours

Thanks to their infill with door panels, doors go perfectly with garage doors availabie in the FAKRO range. Aluminium elements are powder-coated in one of the standard RAL colours or painted in a wood colour chosen by the customer, namely: golden oak, walnut or winchester.

The applied door panels offer the option of a smooth or woodgrain structure, depending on individual customer preference and technical requirements of the building. On the inside, the surface is white as standard, but upon customer request it can be filled with 0.75 mm powder-coated sheet metal in door colour.

Equipment

Fitted as standard with a low aluminium threshold featuring a height of 15 mm, two surface hinges, a single lock with a lock cylinder and a handle in a colour matching it.

Accessories

The modern design allows for the installation of many accessories available in the FAKRO offer. They significantly increase the functionality, safety, aesthetics and comfort of operation (door knockers, additional locks, electric strikes, reed relays etc).

Aluminium side doors Aluminium side doors



Modele drzwi aluminiowych bocznych

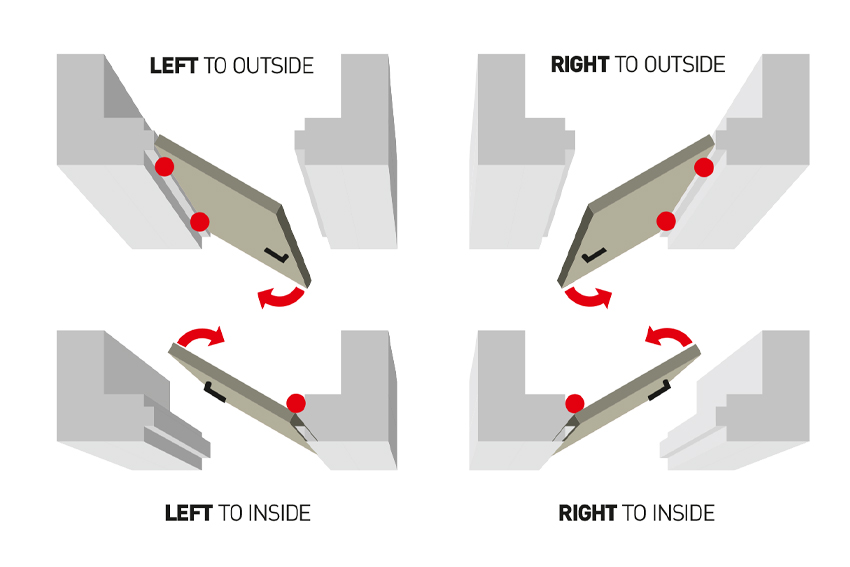

Door opening directions

Door opening directions
