Wooden profiles types

Technical information - FAKRO

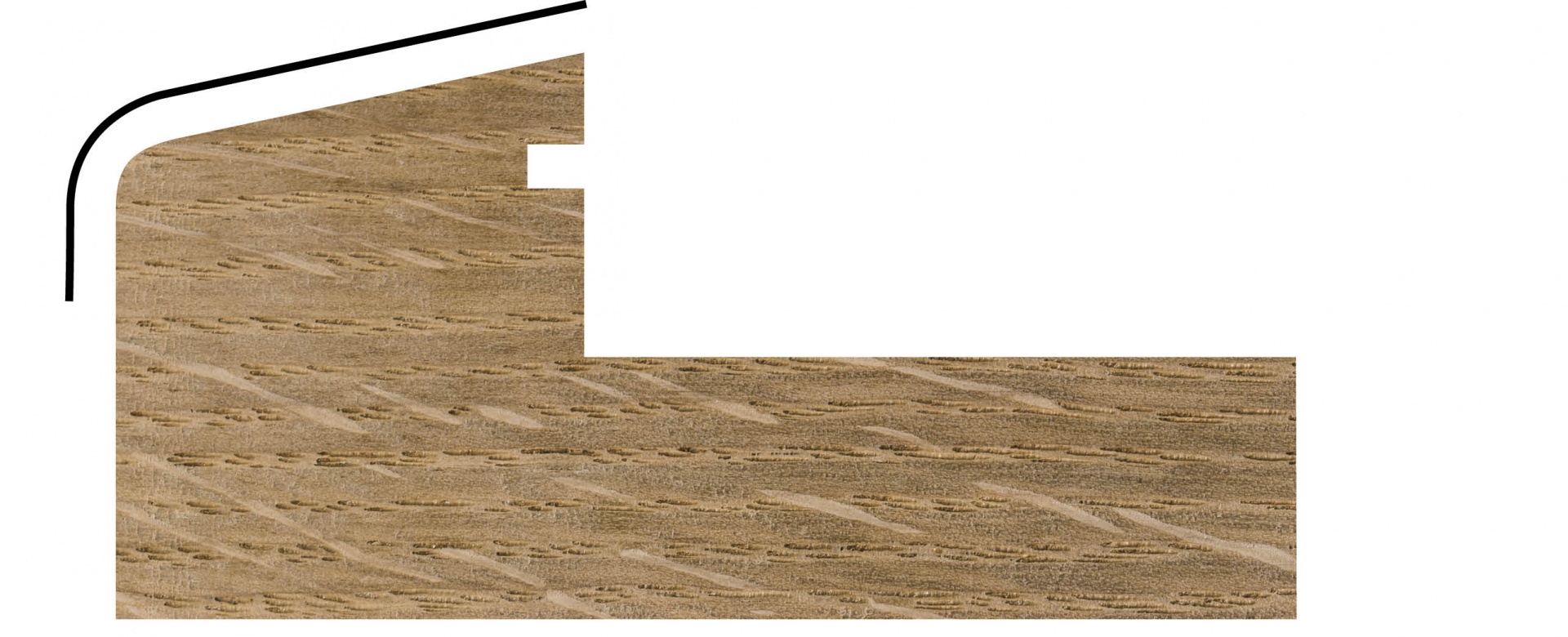

CLASSIC

With a slight angled profile of 12° to give a soft and smooth line. This angle is the same as that of FAKRO roof windows and naturally allows the use of FAKRO internal accessories.

Technical information - FAKRO

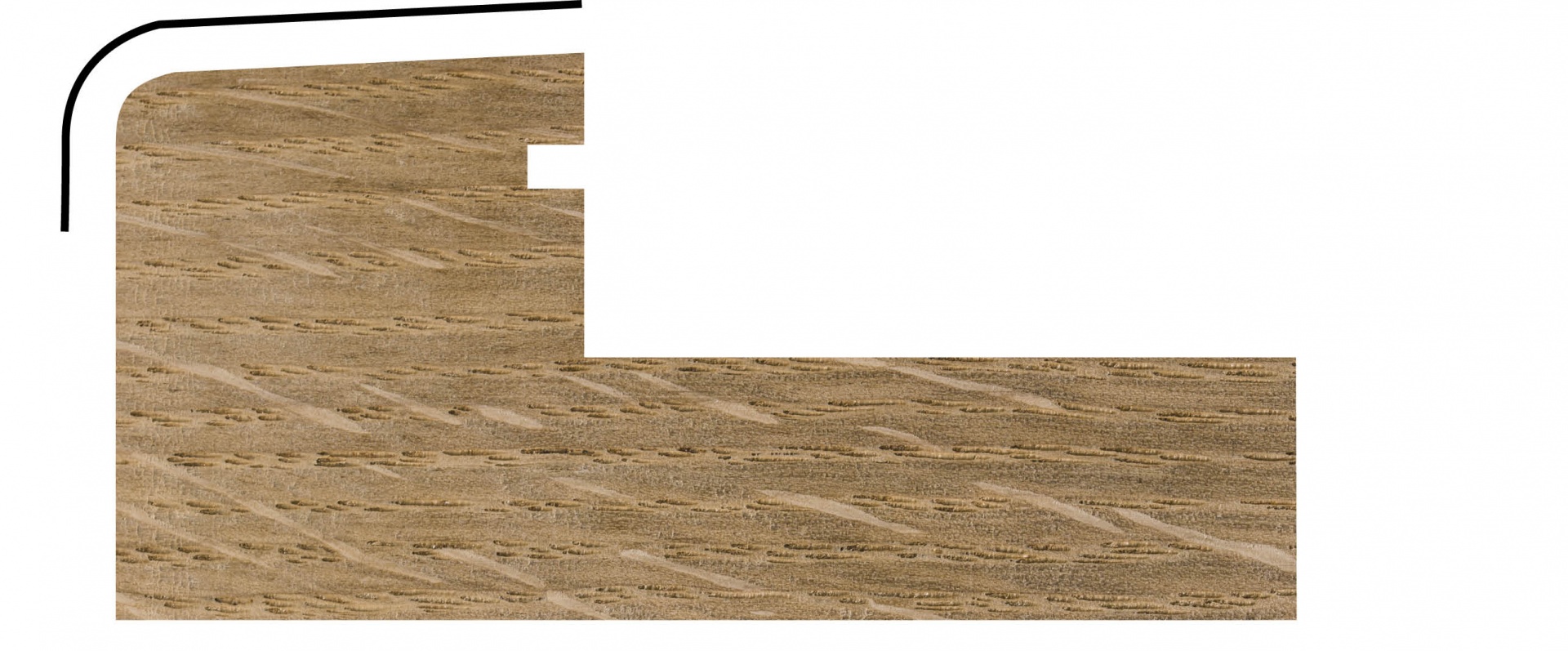

REGULAR

This is a straight and more modern profile which is designed for use with interiors that have a more modern feel to them.

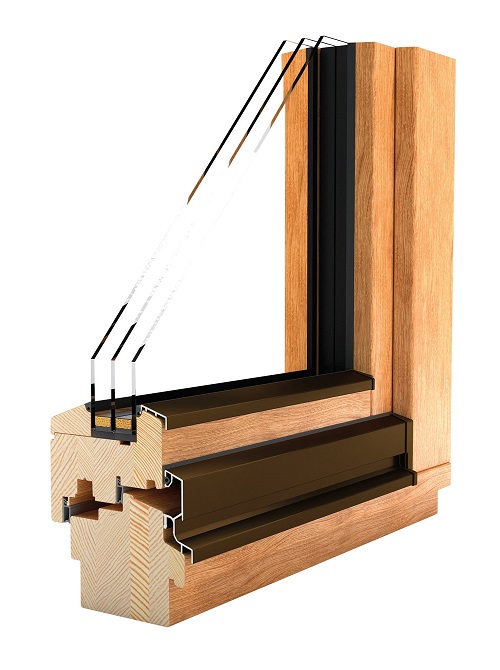

Wooden profile 78

The IV 78 system is a modern, layer-glued profile with a thickness of 78 mm made of carefully selected wood – pine, Meranti or oak. Wooden windows come with three seals as standard and are available in double and triple-chamber options. They stand out with high tightness and good insulation parameters thanks to the use of a modern drip cap, triple sealing and glazing bead. The window featuring fashionable design and stable structure can decorate any building.



Material: Pine, Oak, Meranti
Heat transfer coefficient Uw: up to 0,86 W/m2K
Soundproof performance Rw: up to 45 dB
Glazing unit: 36 mm (triple-glazed)



Technical information - FAKRO

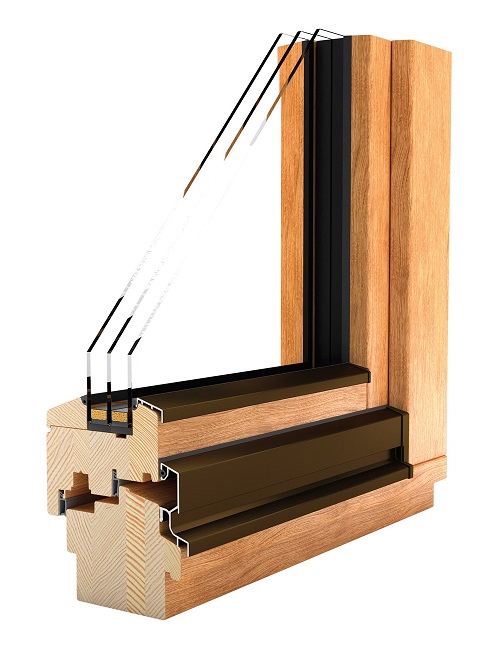

Wooden profile 92

The IV 92 system is a massive, layer-glued profile with a thickness of 92 mm made of carefully selected wood – pine, Meranti or oak. It features excellent operational parameters and very good heat transfer coefficient. Windows with the 92 mm profile are equipped with three seals as standard and are suitable for energyefficient construction.



Material: Pine, Oak, Meranti
Heat transfer coefficient Uw: up to 0,66 W/m2K
Soundproof performance Rw: up to 45 dB
Glazing unit: up to 48 mm (triple-glazed or quadruple-glazed)



Technical information - FAKRO



Available colours

Available colours
