Renovation flat roof skylights
Roof skylights DXA, DEA
FAKRO roof skylights are modern solutions that provide very good illumination for rooms under flat roofs, while ensuring impeccable aesthetics and functionality. Available in modern cladding colours, namely grey-brown RAL 7022, anthracite 7016 and black RAL 9005, they fit perfectly into current colour trends.

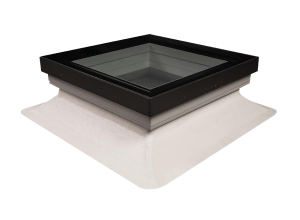

DXA – non-opening roof skylight providing very good thermal insulation thanks to its solid sash and frame construction made of aluminium and plastic. Available with a single or double chamber glazing unit.
The base on which the skylight is mounted is not included in the set – it must be purchased separately.

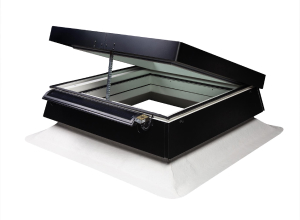

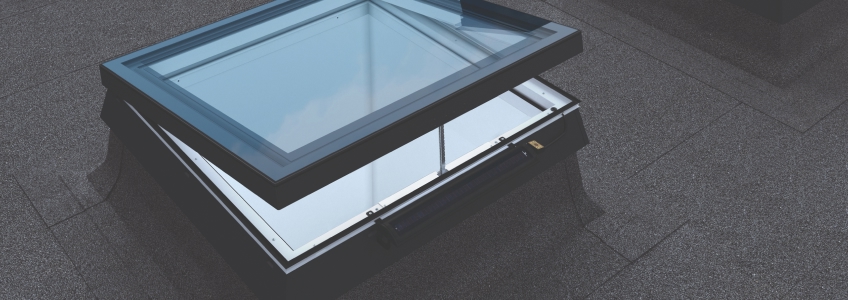

DEA – innovative, opening solar skylight equipped as standard with an insect screen, rain sensor and PV panel. Made of aluminium and plastic, with features that support automated operation and ease of use. Available with a single or double chamber (G53) glazing unit, standing behind optimal insulation.
Solar-powered skylights are designed to operate using energy from an integrated photovoltaic panel, reducing the need for a separate power connection.
Rich equipment - integrated insect screen, ZRH1 remote control, PV panel and rain sensor are standard equipment for every solar skylight.
Efficient room ventilation - the actuator allows the skylight to be opened by 25 cm (applying to solar version) providing ventilation for the space under the skylight.
The base on which the skylight is mounted is not included in the set – it must be purchased separately.
DXA is a non-opening roof skylight with an aluminium and plastic sash and frame construction. Depending on the selected glazing configuration, the product can help support the thermal performance of the roof opening.
When should flat roof windows be replaced?
- Poor thermal insulation – if you are experiencing significant heat loss and your heating bills are rising, it is a sign that your windows no longer meet insulation standards.
- Ventilation problems – no proper air circulation may lead to damp rooms and mould growth. When windows do not provide proper ventilation, it is a good idea to replace them.
- Damage or leaks – visible cracks, frame deformation or leaks are a clear signal that the window has lost its tightness and must be replaced.
- Excessive outside noise – if ambient noise becomes bothersome, old sound insulation may no longer be working properly. Modern skylights are much better at reducing outside noise.
- No compatibility with accessories – when older windows cannot be equipped with modern accessories such as shutters, blinds or rain sensors, it is worth considering their replacement.
Why to choose FAKRO renovation flat roof skylights?
Ample natural light
Maximising brightness inside with a large glass surface
Unique design
Frameless, elegant glass top surface for a modern look.
Protection against UV radiation
Designed to reduce exposure to solar radiation inside the room.
Ease of installation
Designed to support efficient installation in renovation projects.
Opening options
Choice between non-opening and solar version for even greater convenience.
Wide range of accessories
Option to customise skylights according to user's preferences.
Modern technology
A remote control, rain sensor and insect screen are included in the solar version.
Size availability
Skylights come in standard and non-standard sizes to meet customer needs.
Perfect fit
Designed specifically for flat roofs with pitches from 0° to 15°.

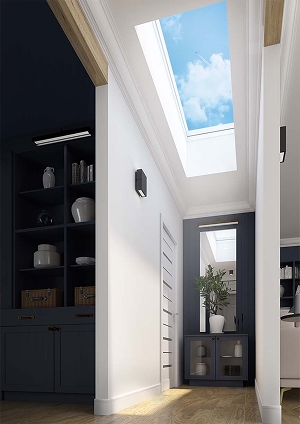

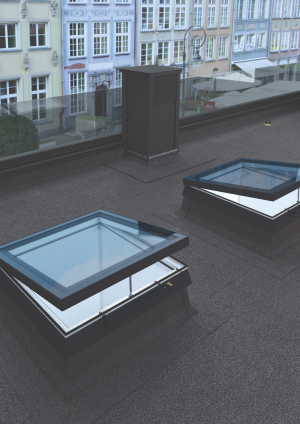

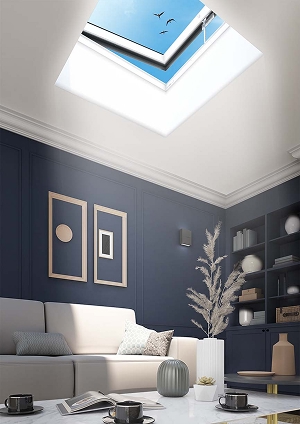

Gallery DEA

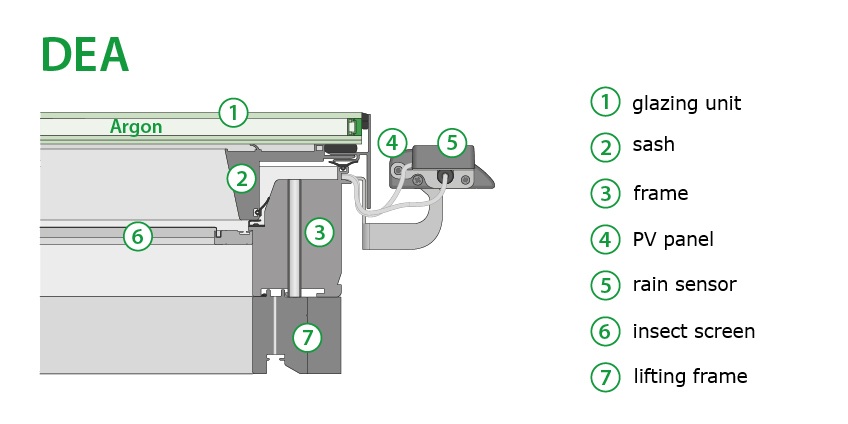

Cross-section of the DEA
Essential characteristics DXA, DEA
| DEA G33, DXA G33 | DEA G53, DXA G53 | |
| resistance to upward load | UL1500 | UL1500 |
| resistance to downward load | DL2500 | DL2500 |
| impact resistance, large soft body | SB1200 | SB1200 |
| Urc thermal transmittance coefficient* | Urc=1,3 W/m2 K A:3,8 m2 | Urc=1,1 W/m2 K A:3,85 m2 |
* Urc is a thermal transmittance coefficient of the skylight with a mounting base calculated for the reference size (150x150 cm).
-
DXA
- 1,7 W/m²K U-Factor (skylight) 4HT10-Tg14Ar-33.2 glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe) Class 4 Air Leakage [cfm/ft2]
- 1,5 W/m²K U-Factor (skylight) 4HT10-Tg10Ar-4H-Tg8Ar-33.2 glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated (safe) Class 4 Air Leakage [cfm/ft2]
nieotwierany świetlik dachowy -
DEA
- 1,7 W/m²K U-Factor (skylight) 4HT10-Tg14Ar-33.2 glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A Class 3 Air Leakage [cfm/ft2]
- 1,5 W/m²K U-Factor (skylight) 4HT10-Tg10Ar-4H-Tg8Ar-33.2 glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A Class 3 Air Leakage [cfm/ft2]
otwierany świetlik solarny
Please note
The commercial size of the renovation skylight is the same as the internal size of the base on which the skylight is mounted.
