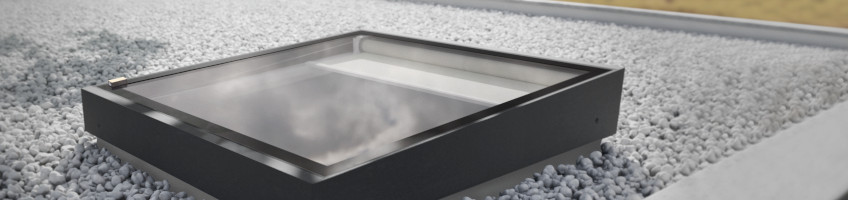

Flat roof windows type Z

New line of the D_Z flat roof window is based on design applied in type G windows. A specially constructed glass section with a slope on the outer surface allows drainage of water even when the window is fitted perfectly horizontally in relation to the roofline. Factory-installed angled glass section replacing a dome makes the window installation process quicker. The window comes as standard with the P2 anti-burglary glazing unit and factory-fitted AMZ/Z Z-Wave awning blind installed under the glass segment, therefore it is not exposed to adverse weather conditions and does not spoil the aesthetics of the product. In the case of DX_ (non-opening) and DM_ (manually opened) windows it is necessary to purchase a power supply unit for the awning blind.

Excellent thermal insulation performance. Thanks to proven design of the window which is constructed of multi-chamber PVC profiles filled with insulation material, heat transfer coefficient for a whole window U-value is 0.95 W/m2K. The D_Z aluminum window profile is finished in RAL 9005 (black).

D_Z-A windows come with welded glass section to secure modern aesthetics, while D_Z-B windows are equipped with riveted glass section.





Features

Glazing units

Windows are offered with safe P2 glazing unit having the internal pane anti-burglary class P2A. Should the pane crack, shards of glass do not pose a danger but remain on the laminate film. Anti-burglary P4 glazing unit with P4A class laminate is available as option.



Accessories

Windows are available with a factory-installed AMZ/Z Z-Wave awning blind under the glass section, thus providing a fully functional solution while saving time and limiting investment expenditures. The structure of the window enables installation of internal accessories.



Installation pitch

Installation possible from 0° without any additional elements that would increase the installation pitch to 15°.



Available sizes

Windows are available in 8 standard sizes from 60×60cm to 120×120cm. Upon request, windows can be manufactured in non-standard sizes in the range of 60×60 - 120×120cm. This enables D_Z windows to be used as renovation windows or applied in non-standard projects.



  • DEZ-A


    DEZ-A P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    electrically opened with wireless Z-Wave system

  • DEZ-B


    DEZ-B P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    electrically opened with wireless Z-Wave system

  • DMZ-A


    DMZ-A P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    manually opened by control rod

  • DMZ-B


    DMZ-B P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    manually opened by control rod

  • DXZ-A


    DXZ-A P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    non-opening

  • DXZ-B


    DXZ-B P2 AMZ/Z
    • LUX window class 0,95 W/m²K window U-value 1,1 W/m²K glazing U-value 4H – 14 - 33.2T + 4H; 4H – 14 – 33.2T + 6H glazing unit argon inert gas filled panes + external glass toughened + internal glass laminated, anti-burglary glass class P2A class 4 Air Leakage [cfm/ft2]

    non-opening
