Fire-resistant loft ladders and L-Shaped combination door

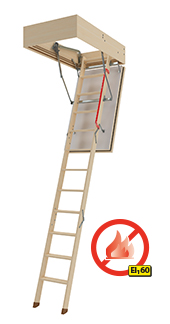

  • LWF 60


    • Stile endsstile ends
    • Klapa jednostronnie ognioodpornafire-resistant white hatch
    • Three peripheral sealsthree peripheral seal
    • Treads set flush with ladder stringsnon-slip threads set flush with ladders strings
    • Handrailhandrail
    • Possibility of installing additional accessoriespossibility of installing additional accessories
    LWF 60
    • 160 kg maximum loading U=0,64 W/m²K loft ladder U-value 7,9 cm insulation thickness 8,5 cm hatch thickness EN 14975 norm requirements

    The LWF 60 loft ladder is a new generation that perfectly combines  the high level of fire-protection with comfortable and safe access to attic space. Fire-resistance classification LWF 60 El1/ EI2=60 min wg EN 13501-2.



  • LMF 60


    • Stile endsplastic ends
    • Klapa jednostronnie ognioodpornafire-resistant white hatch
    • Three peripheral seals3 peripheral gaskets
    • Non-slip treadsnon-slip metal steps
    • Handrailhandrail (10'1” max. ceiling ladders)
    • Ladder unloading mechanismladder unloading mechanism, built in handrail
    • Possibility of installing additional accessoriesadditional accessories available
    • Do wysokich pomieszczeńintended for installation with high ceilings
    • 2 year warranty
    LMF 60
    • 350 lbs maximum loading 3 1/8" insulation thickness 3 3/8" hatch thickness 60 minutes in accordance with ASTM E119-14 and NFPA 288 norm requirements 8.9 attic ladder R-value

    The LMF60 model is a new generation attic ladder that provides access to unused space in the attic and at the same time functions as a fire protection for 60 minutes (1 hour rating in accordance with NFPA 288 and ASTM E119-14.)

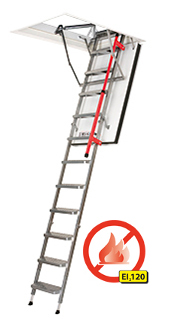

  • LMF 120


    • Telescopic stile endstelescopic stile ends
    • Klapa jednostronnie ognioodpornafire-resistant hatch
    • Finishing lining slatsfinishing lining slats
    • Two peripheral sealsperipheral seal
    • Metal treadnon-slip treads
    • Ladder unloading mechanismladder unloading mechanism, built in handrail
    • System of quick installation in the ceilingsystem of quick installation in the ceiling
    • Possibility of installing additional accessoriespossibility of installing additional accessories
    • Fully assembledfully assembled and ready for quick installation in the ceiling
    • 3 year warranty3 year warranty
    LMF 120
    • 200 kg maximum loading U=0.79 W/m²K * loft ladder hatch U-value 8 cm insulation thickness 8.2 cm hatch thickness EN 14975 norm requirements
    The LMF 120 3-section loft ladder complies with fire-resistant standards, whilst providing safe and comfortable access to the loft spaces.
    The LMF 120 ladder prevents smoke and fire from spreading to the upper or lower fire free storey for 120 minutes. (EI2= 120 min, classification according to EN 13501-2).
  • LSF


    • Fire - resistant hatchfire-resistant hatch
    • Finishing lining slatsfinishing lining slats
    • Metal treadnon-slip treads
    • Additional treadpossibility of adding or detaching segments
    • System of quick installation in the ceilingsystem of quick installation in the ceiling
    • Possibility of installing additional accessoriespossibility of installing additionl accessories
    • Fully assembledsystem of adopting the ladder length to the ceiling height
    • 3 year warranty3 year warranty
    LSF
    • 200 kg maximum loading - loft ladder hatch U-value 3 cm insulation thickness 5.4 cm hatch thickness EN 14975 norm requirements
    The LSF fire-resistant loft ladder acts as a smoke block inside the building preventing the smoke from passing to a smoke free storey. The loft ladder fireresistance is EI₂= 60 minutes (classification according to EN 13501-2).
  • DWF


    • Fully assembled and ready for quick installationready for quick installation
    • Fire - resistant hatchFire classification as per EN 13501:2 - EI145
    • 3 year warranty3 year warranty
    DWF
    • U=0.64 W/m²K loft ladder hatch U-value 6 cm insulation thickness
    The DWF fire-resistant L-shaped combination doors are intended primarily for installation in vertical walls. These doors ensure access to non-habitable rooms located behind vertical wall as well as protect for 45 minutes against the spread of fire (classification as per EN13501 – EI145). The DWF L-shaped combination doors are universal, hence they can be installed with left as well as right direction of opening. Sash with a thickness of 6.6.cm made of pinewood veneered on both sides with HDF board in white filled with mineral
    wool
