SFD Domed light tunnel with a flexible tube
SFD-_ with a flexible light transmitting.
SFD-_/L with a flexible light transmitting tube and attic illumination function.
It ensures easier use of the room located directly under the light tunnel installation site.
The new design of the light tunnel is characterised by:
- design of the ceiling element allowing for installation and operation of the SLO light kit from the room side
- integrated flashing for faster installation process

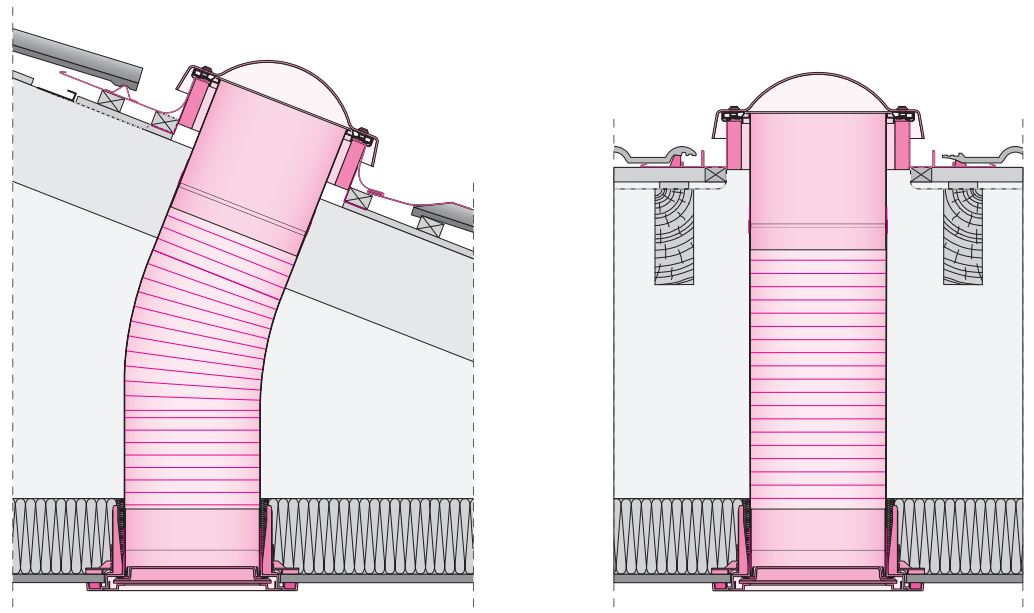

The light tunnel consists of a roofing element, 2.1 m long flexible light transmitting tube, ceiling frame, prismatic diffuser and installation kit.
Features
- Flexible light transmitting tube – Made of metallised polyester, additionally reinforced with a metal wire. This design enables to create a structurally strong light transmitting tube. With its flexibility, the tube is an ideal solution for installation over short distances in rooms with structural obstacles that have to be bypassed. The advised maximum flexible tube length is 4 metres for the 350 mm diameter and 6 metres for the 550 mm diameter tube.
- Roofing element – It consists of a vacuum impregnated wooden frame combined with an aluminium flashing made of 0.6 mm thick sheet metal in RAL 7022 and a UV-resistant dome made of 3 mm thick polycarbonate.
- Ceiling element – It consists of a plastic ceiling frame, white cover and an acrylic diffuser. The new design allows for installation and operation of the SLO light kit from the room side.
Instructions and catalogues
Fitting instructions:
Film installation instructions
Product details:
