Roller shutters ARZ

ARZ roller shutters

The external roller shutter ensures complete comfort in the attic as it protects against excessive heat gain, allows you to darken the room, provides protection against outside noise and ensures privacy.

As the roller shutter is fitted outside, it effectively protects against heat on sunny days. Aluminium slats are joined by means of a special rubber connector that increases the roller shutter’s armour resistance to weather conditions.

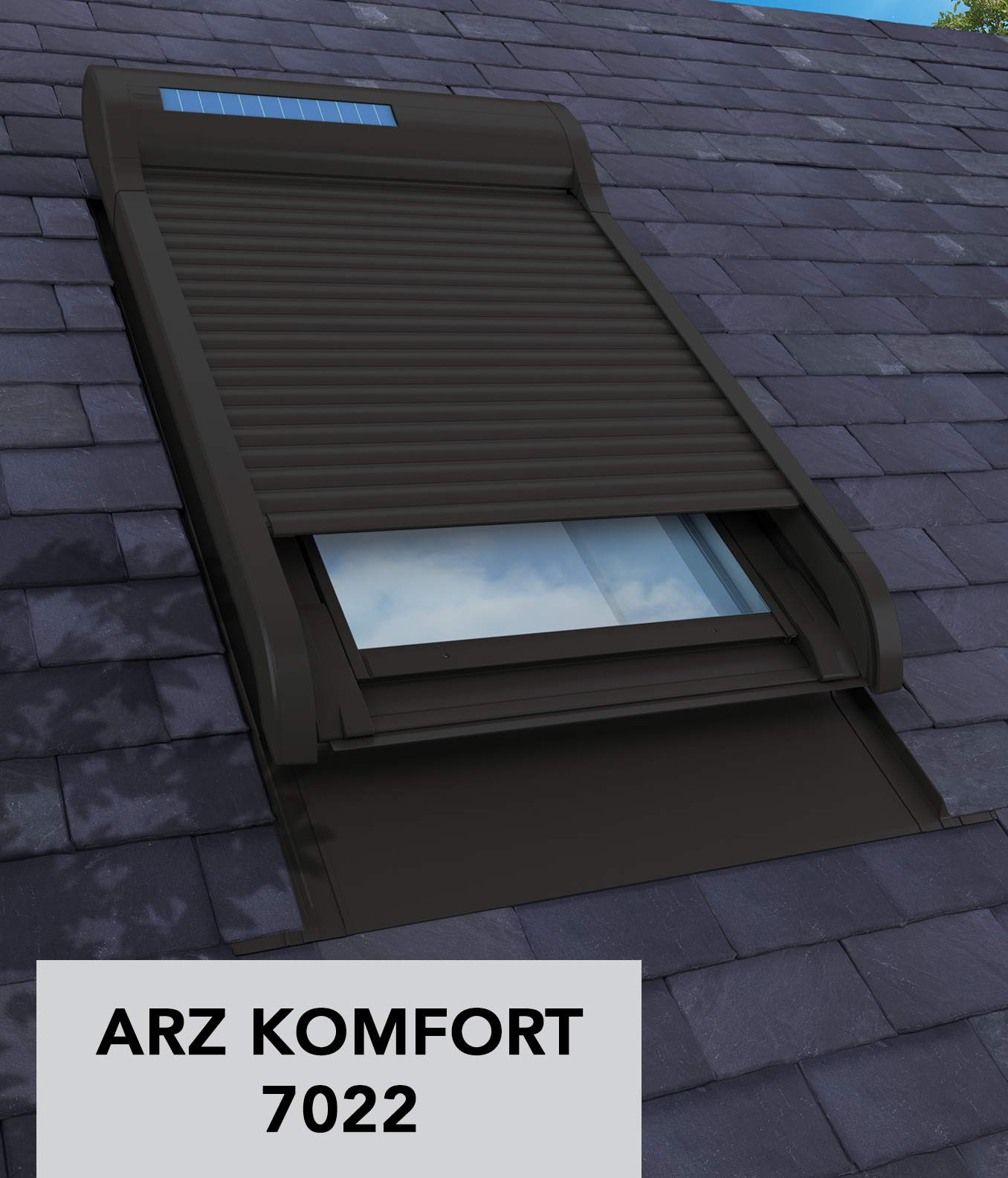

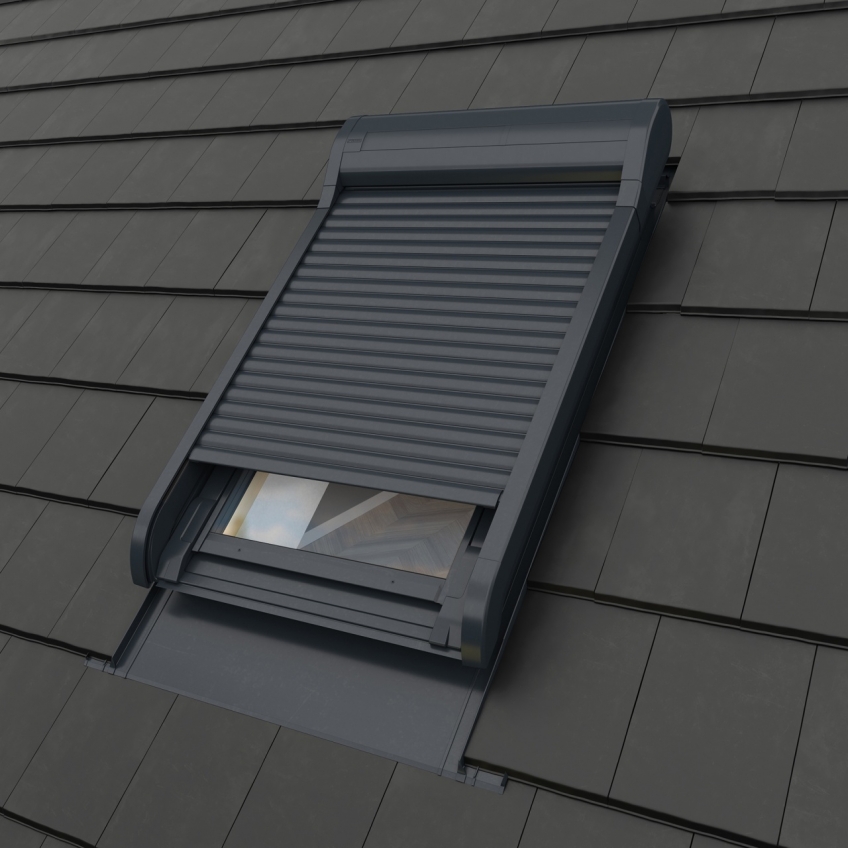

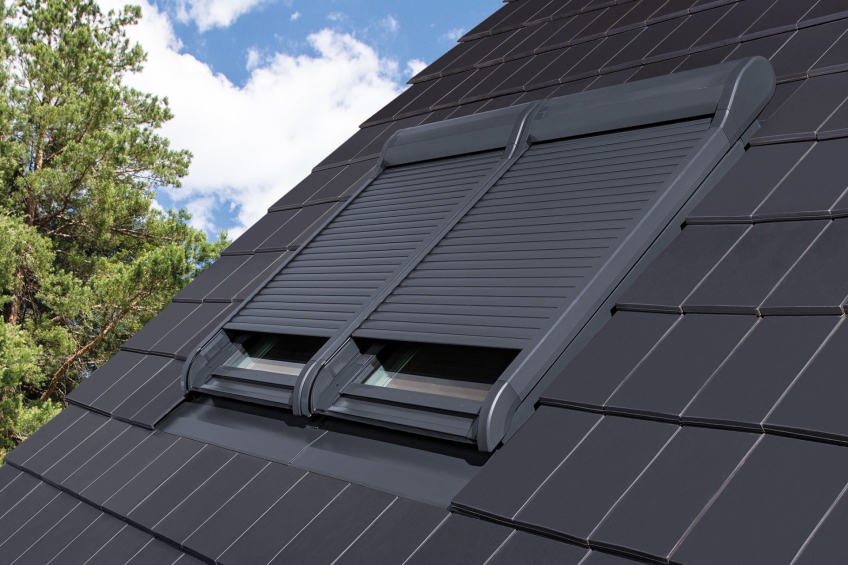

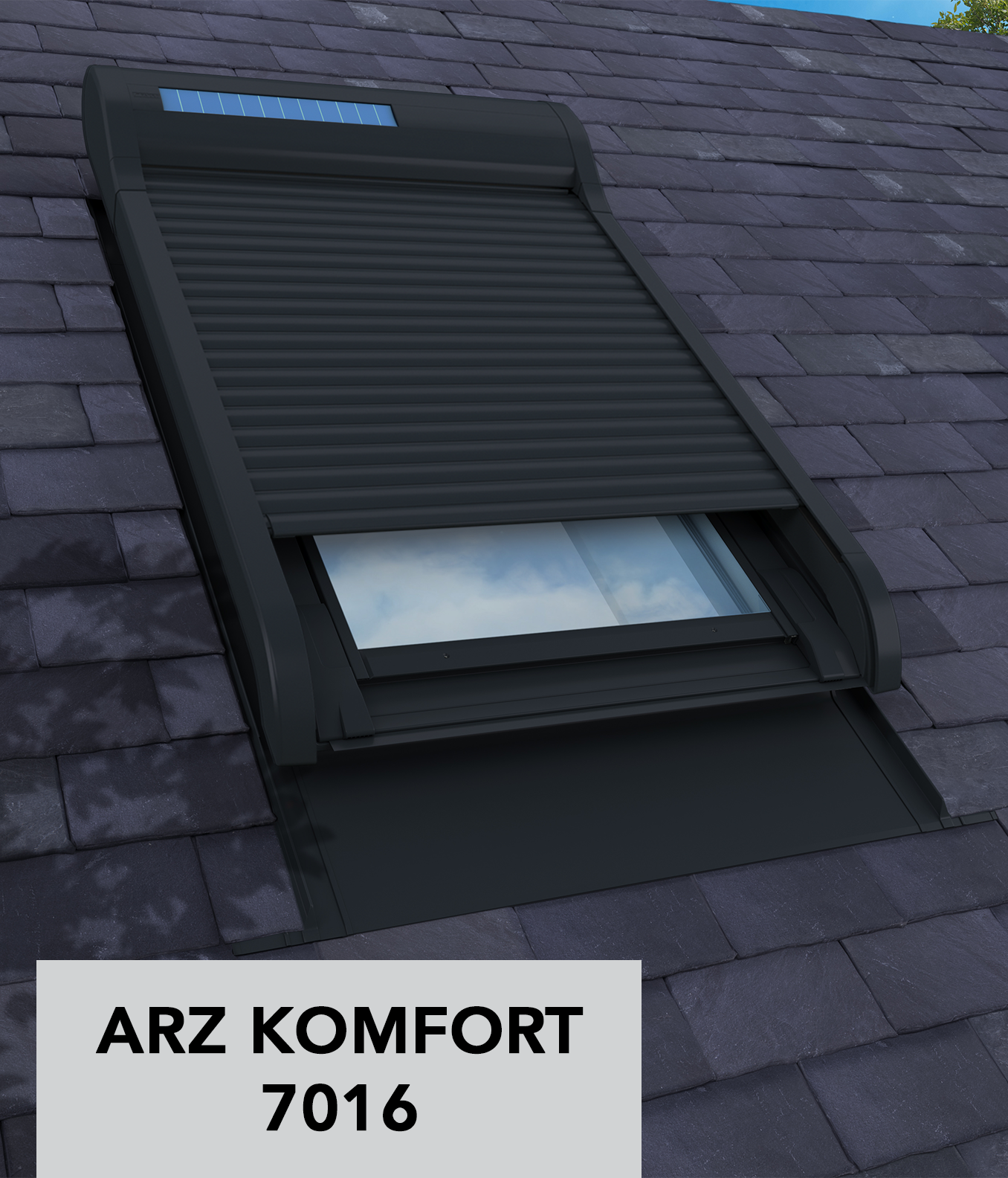

ARZ Komfort ROLLET SHUTTER

  • new armour design increases durability and improves thermal and acoustic performance;
  • new design;
  • available in three RAL colours as standard: 7016 (anthracite), 9005 (black), 7022 (grey-brown).
External roller shutter provides total comfort when using the attic space because it protects from overheating - FAKRO   External roller shutter provides total comfort when using the attic space because it protects from overheating - FAKRO   External roller shutter provides total comfort when using the attic space because it protects from overheating - FAKRO





  • ARZ Komfort Z-Wave


    • Z-wave systemwireless Z-Wave system
    • Operated by wall switchoperated via a wall switch
    • Operated by remote controloperated via a remote control
    • powered by 15VDC
    • compatible with a new generation GREENVIEW roof windows

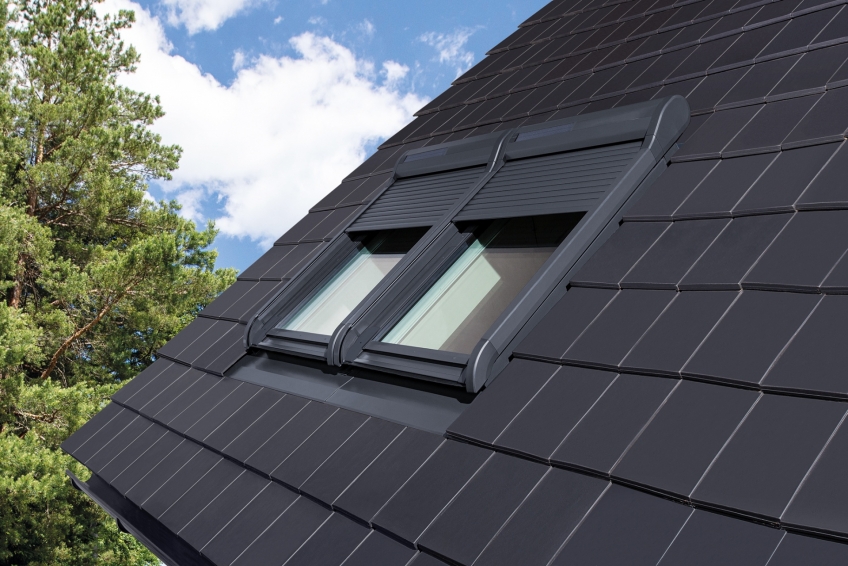

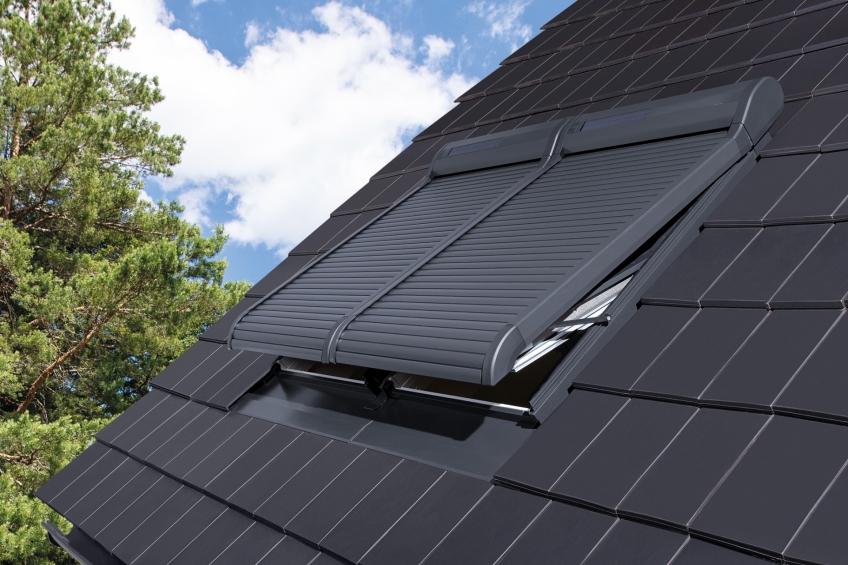

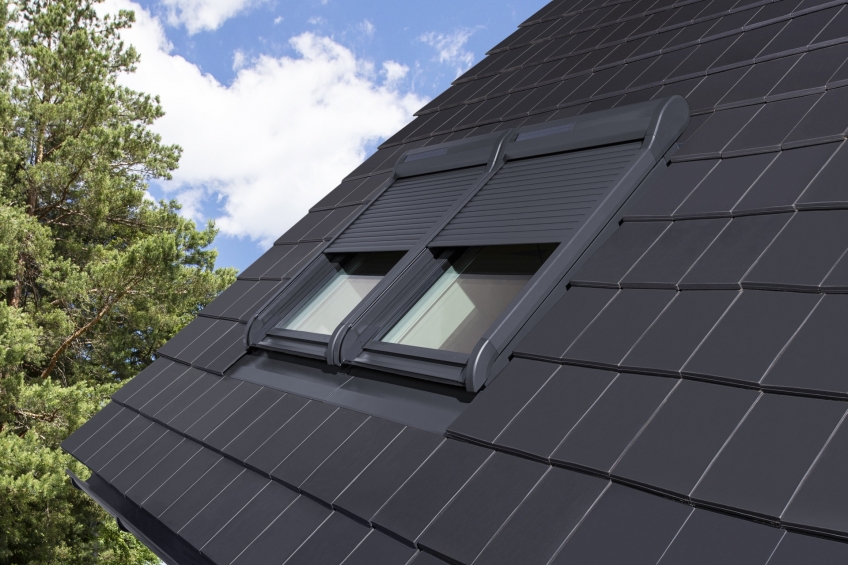

  • ARZ Komfort Z-Wave Solar


    • Powered by solar panelspowered by solar batteries
    • Operated by remote controloperated via a remote control
    • compatible with a new generation GREENVIEW roof windows
  • ARZ Komfort WiFi Tuya


    • Smartfonoperated via a smartphone FAKRO Smart or Tuya app
    • WiFiin wireless WiFi system
    • powered by 15VDC
    • compatible with a new generation GREENVIEW roof windows
  • ARZ WiFi Tuya


    • Smartfonoperated via a smartphone FAKRO Smart or Tuya app
    • WiFiin wireless WiFi system
    • powered by 15VDC
  • ARZ Electro


    • Operated by wall switchoperated via a wall switch
    • ARZ Electro 230 – connected to the mains
    • ARZ Electro 24 – powered from the 24 VDC controller
    • switch sold separately​
  • ARZ-H


    • Operated by handoperated by means of a crank included as standard

Notes:

  • manually rolled up ARZ-H* roller shutter designed for FT_ pivot windows, FYP proSky** windows with increased axis of rotation and for FDY proSky*** windows
  • electrically operated ARZ Z-Wave and ARZ Z-Wave Solar roller shutters can be used with FT_, PT_ pivot windows, FP_ top hung and pivot windows, PPP preSelect windows, FYP proSky* windows with increased axis of rotation and FDY proSky*** windows
  • ARZ_ roller shutters are available in RAL 7022 (grey-brown) cladding colour, RAL 9005 (black) and RAL 7016 (anthracite) are available upon request with no extra charge
  • for Komfort roller shutters the minimum distance in vertical combination is 25 cm
  • Komfort roller shutters are only compatible with roof windows manufactured since 2007 and the new generation GREENVIEW windows



* The ARZ-H roller shutter is not compatible with FTT Thermo windows and aluminium clad-plastic (PVC) PTP and PPP windows.

** For FYP proSky, FDY proSky, FGH Galeria windows as well as for combinations with FX_ bottom windows, special versions of ARZ_ roller shutters must be ordered. When ordering, it is required to provide details from the window’s data plate.

*** When installing roller shutters on bottom FDY and FX windows, the ARZ roller shutter cassette overlaps the glass and may permanently cover up to 20 cm of the glass in the upper section of the window. When ordering, it is required to provide details from the window’s data plate.
