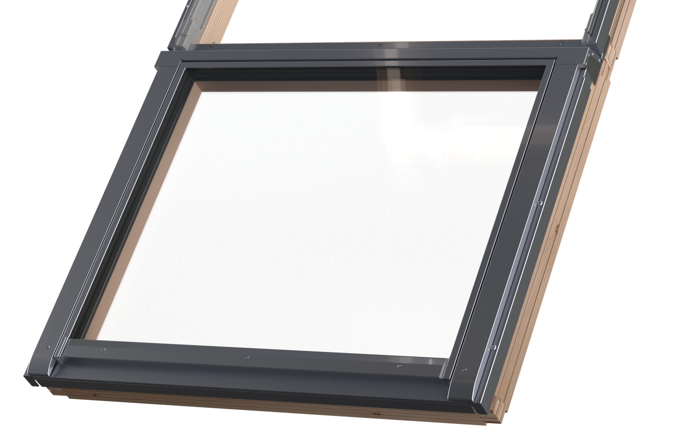

Non-opening combination windows
DESIGNED FOR THERMAL PERFORMANCE
- Manufactured using thermoPro technology, designed to support thermal performance, airtightness and installation efficiency.
- Quadruple sealing system provides additional tightness in extreme weather conditions and reduces micro vibrations of the cladding profiles during heavy rain.
- Modern design, double-chamber P50 glazing unit, thermal transmittance 1.0 W/m²K.
- Recommended for buildings where high thermal performance is a key consideration.
EASY TO KEEP CLEAN
- P50 glazing unit with easy maintenance layer.
- The perfectly smooth surface of FXU windows, coated with three layers of polyurethane varnish.
INCREASED SAFETY
- topSafe system – increased operational safety and burglary resistance.
- The internal glass is laminated and features anti-burglary P2A class.
- Toughened external glass covered by a lifetime hail resistance warranty.
- Acoustic glazing helps reduce the transmission of external noise.
FUNCTIONAL ACCESSORIES
- A narrow connecting strips enhances aesthetics and field of view.
- A special external cladding element is screwed to the sash in the upper roof window.
- Special connecting modules: KDV-X AX00 – for flashings with no insulation, KDV-XT AX00 – for flashings in the THERMO version.
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-90°
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Non-opening window installed exclusively beneath a standard roof window.
- Recommended as an additional lighting element in vertical combinations.
-
FXP P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
finished with two coats of water-based varnish in a natural colour
FXP P50 APMX
- 1.0 W/m²K window U-value 0.55 W/m²K glazing U-value Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing + multi-point opening
-
