Flashings

Flashings for Flat Sheeting EEV/CU, EEV/TC

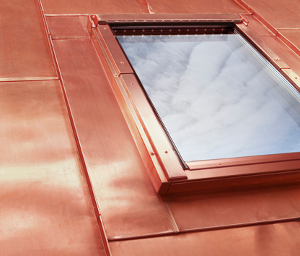

This flashing is used for installation of windows in flat sheet roofs made from
either copper or titanium-zinc. Construction of the side elements is designed to make the window fit neatly with the sheeting.


A series of window units may also be combined:

  • For installation at a depth V in vertical and horizontal grouping.
  • For installation at a depth J vertical grouping only.

Two flashings are available for installation of windows at a depth V (0 cm) and
J (–3 cm).The standard depth for installation of a window with EE flashing is V–EEV flashing. Range of installation in roofs having pitches:
between 15° and 90° for depth V and between 20° and 90° for depth J.

Flashings for Flat Sheeting EEV/CU, EEV/TC



Constituents of the Flashing



This flashing is made of four basic elements. All elements have side profiled finishing allowing for easy connection with flat sheeting. The elements are permanently fixed to the sheeting by folding seams.



Vertical and horizontal cross-section with EEV flashing elements
1 — bottom part of the flashing
2 — top part of the flashing
3 — side parts

Vertical and horizontal cross-section with EEV flashing elements
