PVC top hung and pivot windows
ENERGY-EFFICIENT DESIGN
- Advanced design to ensure two opening methods:
- top hung up to 45° to result in better use of an additional attic space.
- pivot allowing the sash to be rotated through 180°.
- The innovative hardware system is designed to support sash stability in both opening modes. The opening mode can be changed using a switch located in the lower section of the frame, accessible when the window is open.

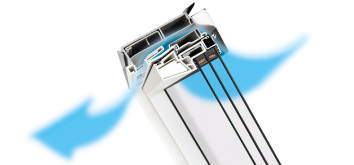

- Multi-chamber PVC profiles are strengthened from the inside with galvanised steel. Profiles are made on the basis of calcium and zinc stabiliser.
- The window incorporates materials and design features intended to resist corrosion and weather exposure and to support low maintenance requirements.
- The window is designed to provide resistance to corrosion and weather exposure while supporting low-maintenance operation.
- The material used does not absorb moisture and features high resistance against acids and alcohols.
- Easy window operation by means of the new handle situated in the base of the sash and featuring two-step micro-opening.
- The hinge situated in the middle of the window enables the sash to be rotated and left open.
- Manufactured using thermoPro technology, designed to support thermal performance, airtightness and installation efficiency.
EASY TO KEEP CLEAN
- External glass with easy maintenance layer.
- The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.
INCREASED SAFETY
- Toughened external glass covered by a lifetime hail resistance warranty (www.fakro.com/service/customer-service/)
- Increased burglary resistance thanks to patented topSafe system.
FUNCTIONAL ACCESSORIES
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-55°
- window in a special version installed in pitches from 55°-85°
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Designed for rooms with increased air humidity, where moist air remains for a longer period.
- Recommended for buildings where particular emphasis is placed on saving thermal energy.
-

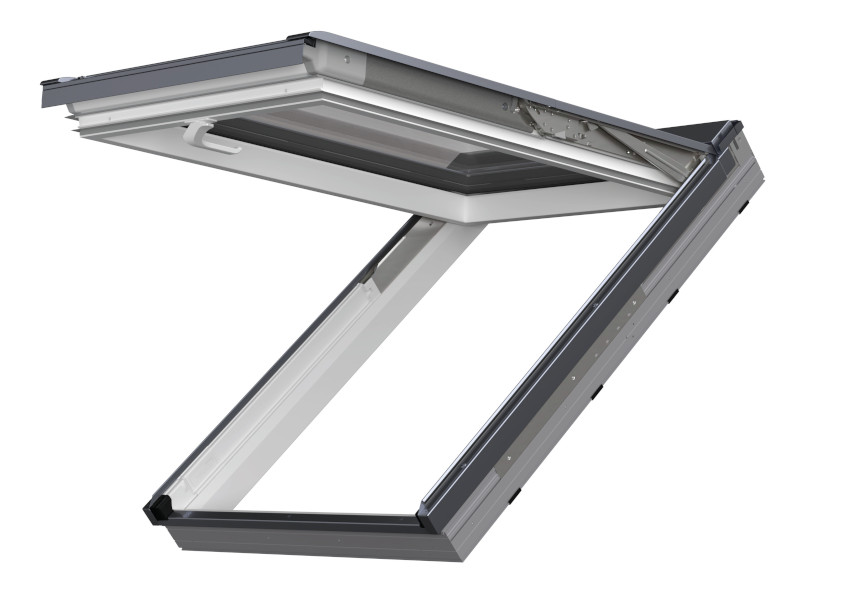

PPP-X MAX P50 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PPP-X MAX P50 ABMX
- 1.0 W/m²K || 0,90 W/m²K with Thermo flashing window U-value 0.55 W/m²K glazing U-value 40 dB acoustic insulation Rw + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type + multi-point opening
-
-
PPP-V MAX U41 ABMX
-
white multi-chamber PVC profiles strengthened from the inside with galvanised steel
-
the material used does not absorb moisture, the window is durable and resistant to corrosion
PPP-V MAX U41 ABMX
- 1.1 W/m²K ||1.0 W/m²K with Thermo flashing window U-value 0.60 W/m²K glazing U-value 35 dB acoustic insulation Rw + external glass toughened no external glass with easy maintenance layer no internal glass laminated (safe) With air inlet. With no air inlet upon request. air inlet type + multi-point opening
-
