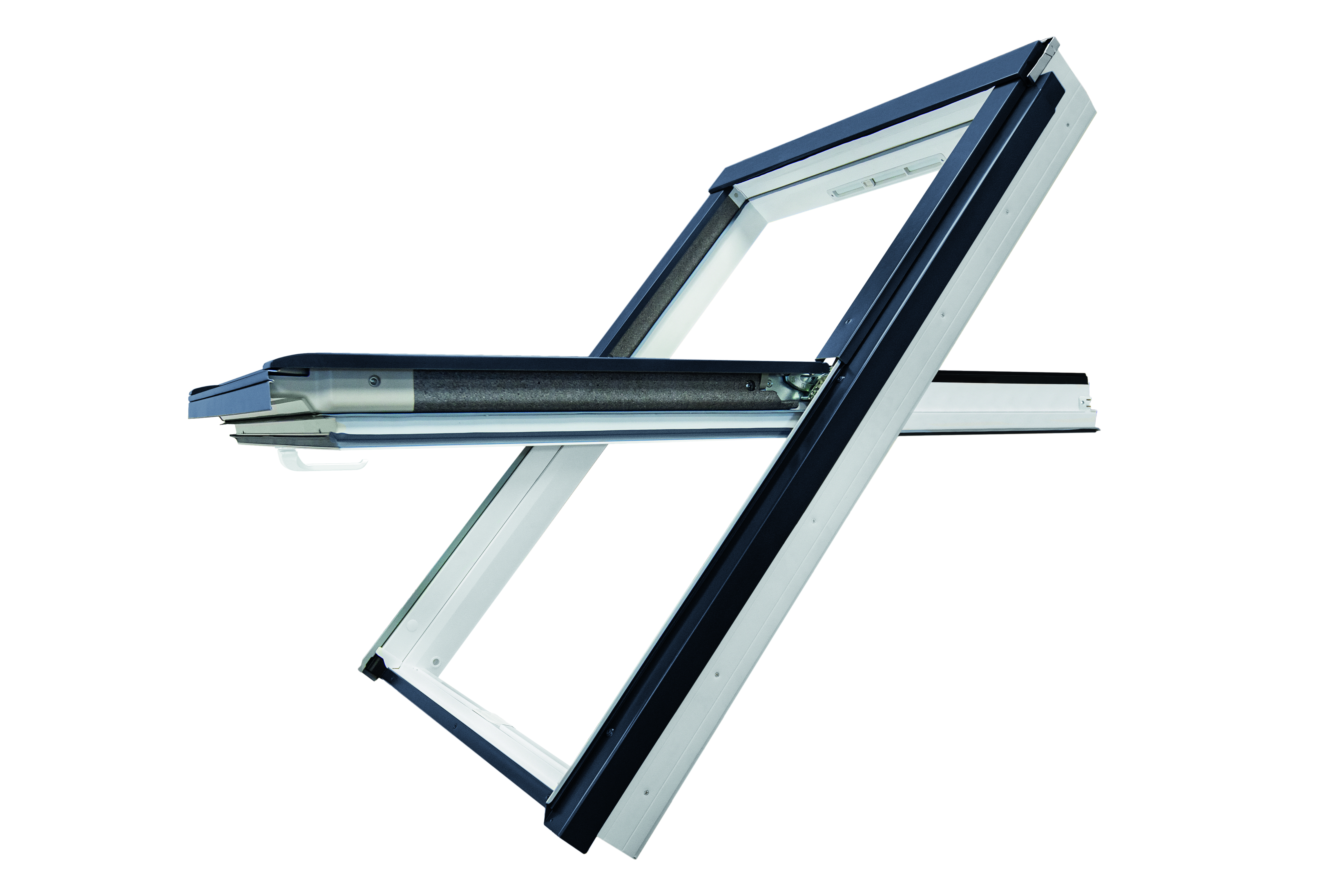

PVC pivot windows

PVC pivot windows

Okna obrotowe drewniane ENERGY-EFFICIENT DESIGN

  • Popular window design with the hinge positioned in the middle of the window height.
  • Easy window operation by means of the handle situated in the base of the sash and featuring two-step micro-opening.
  • Windows manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
  • Eco-friendly product as PVC windows are made largely of recycled material and can be recycled almost entirely.



Okna obrotowe drewniane EASY TO KEEP CLEAN

  • The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.

PVC pivot windows



Okna obrotowe drewniane INCREASED SAFETY

  • Toughened external glass with lifetime hail resistance warranty.
  • Increased burglary resistance thanks to patented topSafe system.



Okna obrotowe drewniane FUNCTIONAL ACCESSORIES

  • Wide range of additional accessories.



Okna obrotowe drewniane INSTALLATION RANGE

  • 15-90°.



Okna obrotowe drewniane CLADDING COLOUR

  • Anthracite RAL 7016 – standard.
  • Grey-brown RAL 7022.
  • Black RAL 9005.



Okna obrotowe drewniane INTENDED USE

  • All attic rooms, particularly kitchens and bathrooms.



Window sizes

Where to buy





  • PTP-X P50 ABMX


    • Multi chamber white PVC profilewhite multi-chamber PVC profiles strengthened from the inside with galvanised steel
    • Window is durable and resistant to corrosionthe material used does not absorb moisture, the window is durable and resistant to corrosion
    PTP-X P50 ABMX
    • 1.0 W/m²K || 0,90 W/m²K with Thermo flashing window U-value 0.55 W/m²K glazing U-value 41 dB acoustic insulation Rw + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type + multi-point opening
  • PTP-V U41 ABMX


    • Multi chamber white PVC profilewhite multi-chamber PVC profiles strengthened from the inside with galvanised steel
    • Window is durable and resistant to corrosionthe material used does not absorb moisture, the window is durable and resistant to corrosion
    PTP-V U41 ABMX
    • 1.1 W/m²K ||1.0 W/m²K with Thermo flashing window U-value 0.60 W/m²K glazing U-value 37 dB acoustic insulation Rw + external glass toughened no external glass with easy maintenance layer no internal glass laminated (safe) With air inlet. With no air inlet upon request. air inlet type + multi-point opening
