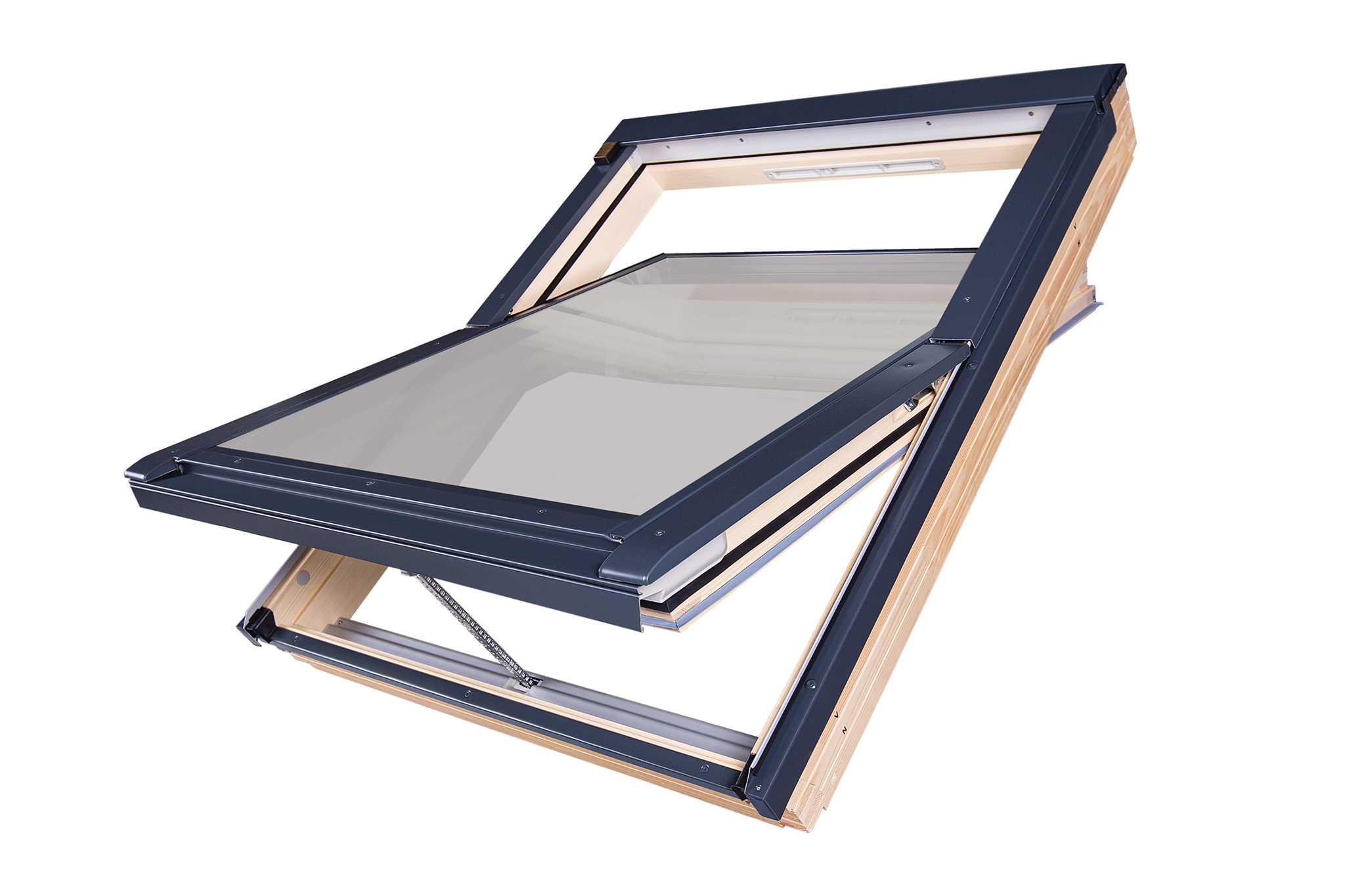

Remotely controlled pivot windows

Remotely controlled pivot windows

Remotely controlled pivot windows ENERGY-EFFICIENT DESIGN

  • Popular window design with the hinge positioned in the middle of the window height. Comfortable operation via a remote control or smartphone app.
  • Equipped with a rain sensor that automatically initiates the sash closing function when the first rain drops appear. Easy connection to 230V mains.
  • Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
  • Made of top quality pinewood and vacuum impregnated.



Remotely controlled pivot windows EASY TO KEEP CLEAN

  • Turning the handle through 90° results in disconnecting the actuator from the sash. The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.

Remotely controlled pivot windows

Remotely controlled pivot windows INCREASED SAFETY

  • Toughened external glass with lifetime hail resistance warranty.
  • Increased burglary resistance thanks to patented topSafe system.



Remotely controlled pivot windows FUNCTIONAL ACCESSORIES

  • Wide range of additional accessories. Windows allow for remote control of electrically operated accessories.



Remotely controlled pivot windows INSTALLATION RANGE

  • 15-90°.



Remotely controlled pivot windows CLADDING COLOUR

  • Anthracite RAL 7016 – standard.
  • Grey-brown RAL 7022.
  • Black RAL 9005.



Remotely controlled pivot windows INTENDED USE

  • Attic rooms, particularly bedrooms, children’s rooms and living rooms.





Window sizes

Where to buy





  • FTP-X P50 APZX Z-Wave


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FTP-X P50 APZX Z-Wave
    • 1.0 W/m²K window U-value 0.55 W/m²K glazing U-value Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing

    TECHNOLOGY
    Z-Wave wireless data transmission protocol, new radio network

    CONTROL
    The Z-Wave window works with FIBARO products via an internet gateway. You can create a smart home and control it using an app or your voice.

  • FTP-X P50 APWX WiFi Tuya


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FTP-X P50 APWX WiFi Tuya
    • 1.0 W/m²K window U-value 0.60 W/m²K glazing U-value Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing

    TECHNOLOGY
    WiFi wireless data transmission protocol

    CONTROL
    Using smartphone with FAKRO Smart or Tuya app
