Top hung and pivot windows

Top hung and pivot windows

Top hung and pivot windows ENERGY-EFFICIENT DESIGN

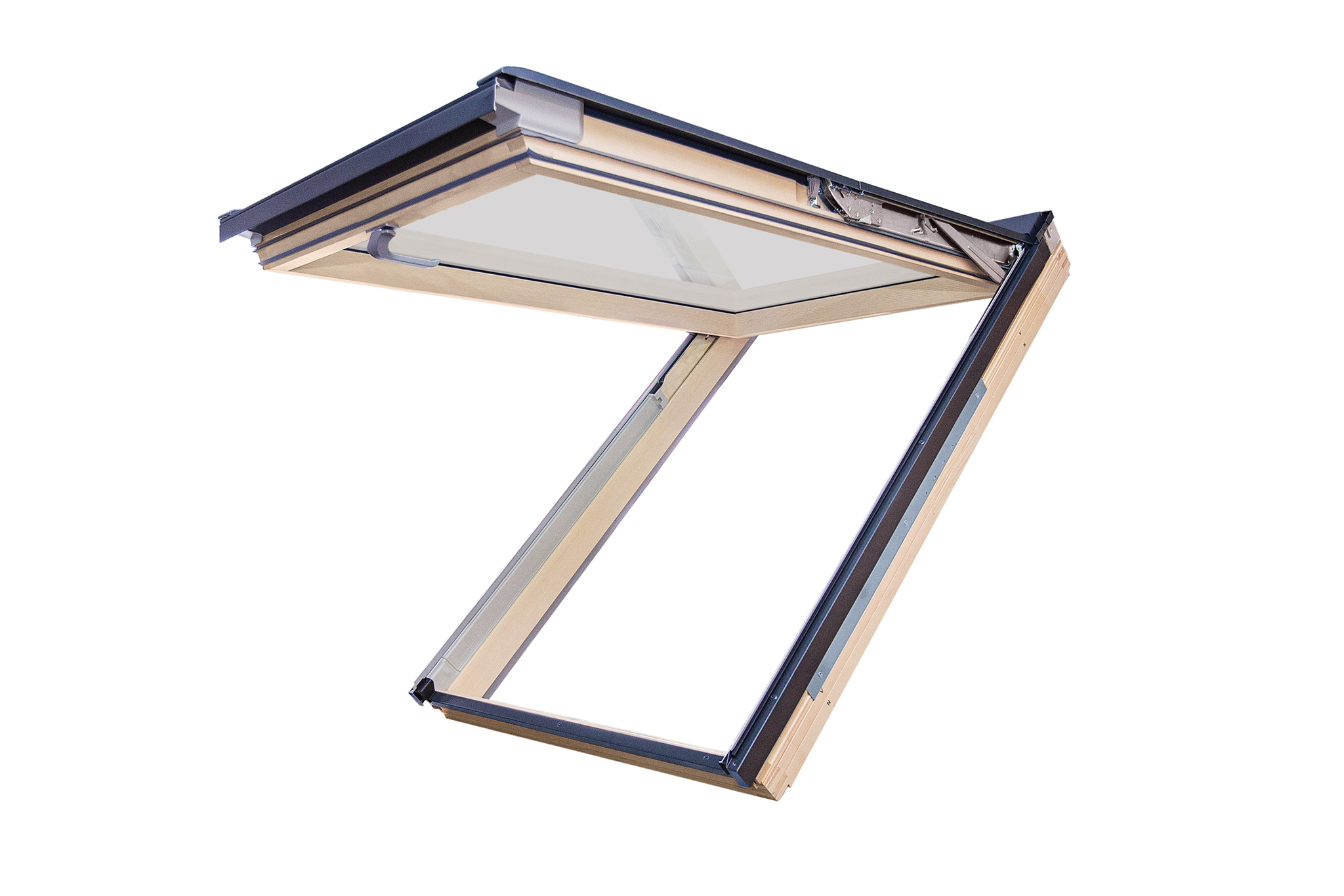

  • Advanced design to ensure two opening methods:
    • top hung up to 45° to result in better use of an additional attic space.
    • pivot allowing the sash to be rotated through 180°.
  • Opening method can be changed using easily accessible switch.
  • Easy window operation by means of the handle situated in the base of the sash and featuring two-step micro-opening.
  • Made of top quality pinewood and vacuum impregnated.

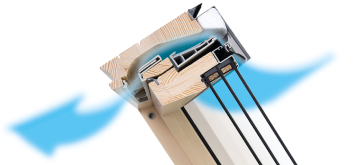

  • Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.



Top hung and pivot windows

Top hung and pivot windowsEASY TO KEEP CLEAN

  • The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.



Top hung and pivot windows INCREASED SAFETY

  • Toughened external glass with lifetime hail resistance warranty.
  • Increased burglary resistance thanks to patented topSafe system.



Top hung and pivot windows FUNCTIONAL ACCESSORIES

  • Wide range of additional accessories.



Top hung and pivot windows INSTALLATION RANGE

  • 15-55°, window in a special version installed in pitches from 55°-85°.



Top hung and pivot windows THREE CLADDING COLOURS TO CHOOSE FROM

  • Anthracite RAL 7016 – standard.
  • Grey-brown RAL 7022.
  • Black RAL 9005.



Top hung and pivot windows INTENDED USE

  • Attic rooms, particularly bedrooms, children’s rooms and living rooms.



Window sizes

Where to buy





  • FPP-X MAX P50 APMX


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FPP-X MAX P50 APMX
    • 1.0 W/m²K window U-value 0.55 W/m²K glazing U-value 40 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing + multi-point opening
  • FPP-V MAX U41 APMX


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FPP-V U41 MAX APMX
    • 1.1 W/m²K window U-value 0.60 W/m²K glazing U-value 35 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened no external glass with easy maintenance layer no internal glass laminated (safe) With air inlet. With no air inlet upon request. air inlet type twice varnishing + multi-point opening
