Windows with lower transom

Windows with lower transom

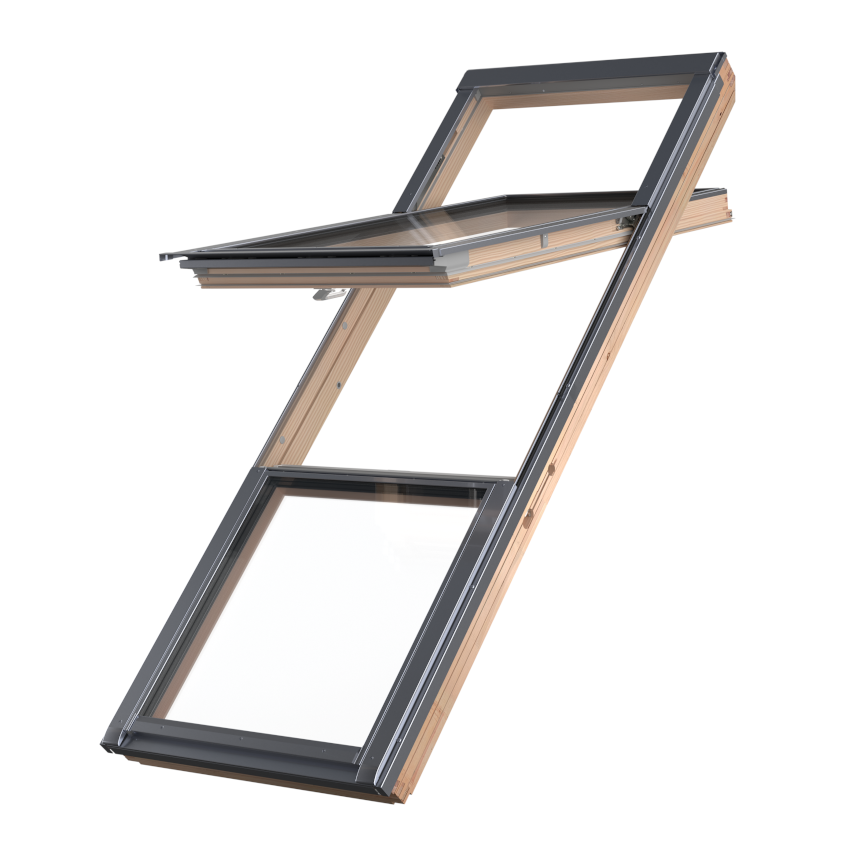

Windows with lower transom ERGONOMICS AND COMFORT OF USE

  • Richly equipped double sash window.
  • The upper sash is opened like a pivot window with its axis of rotation situated above the centre of the window, so even a tall person can easily walk up to the window edge.
  • Duet proSky window eliminates the need for traditional vertical combinations, thus offering a greater illumination area.



Windows with lower transom INTUITIVE OPERATION AND FUNCTIONALITY

  • Easy operation by means of the handle positioned in the base of the sash and featuring two-step micro-opening.
  • The hinge enables the sash to be rotated and left open. The sash when opened in position from 0° to 45° is supported by innovative supporting mechanism.
  • The sash can be rotated through 160° and locked allowing safe and easy cleaning of the outer pane.



Windows with lower transom

Windows with lower transom ENERGY-EFFICIENT DESIGN

  • Manufactured in thermoPro technology to result in higher energy-efficiency performance, greater durability, excellent tightness and facilitated installation process.
  • Quadruple sealing system provides additional tightness in extreme weather conditions and reduces micro vibrations of the cladding profiles during heavy rain.
  • The internal glass is laminated and features P2A anti-burglary class.
  • Sound-insulating glass effectively reduces noise penetration.



Windows with lower transom LONG-LASTING PROTECTION

  • Made of vacuum impregnated pinewood.



Windows with lower transom INCREASED SAFETY

  • Toughened external glass with lifetime hail resistance warranty.
  • Increased operational safety and burglary resistance – topSafe system.



Windows with lower transom FUNCTIONAL ACCESSORIES

  • Wide range of additional accessories. Check their compatibility.



Windows with lower transom INSTALLATION RANGE

  • 25-65˚



Windows with lower transom CLADDING COLOUR

  • Anthracite RAL 7016 - standard
  • Grey-brown RAL 7022
  • Black RAL 9005



Windows with lower transom INTENDED USE

  • Recommended for buildings where special emphasis is put on thermal energy savings.
  • Suitable for installation in horizontal combinations.

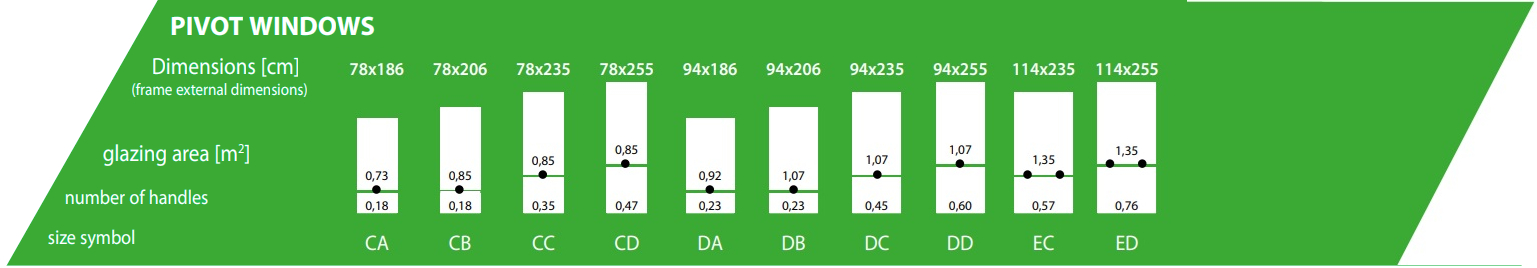

Window sizes

Distribution

  • FDP-X P50 APMX


    • Highest quality pine woodhigh-quality pinewood, glued in layers and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice with eco-friendly water based varnish in natural colour
    FDP-X P50 APMX
    • 1.1 W/m²K || 1.0 W/m²K with Thermo flashing window U-value 0.55 W/m²K glazing U-value 40 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) Without air inlet. With air inlet upon request. air inlet type twice varnishing + multi-point opening
