Windows with raised axis of rotation

Windows with raised axis of rotation

Windows with raised axis of rotation ERGONOMIC DESIGN

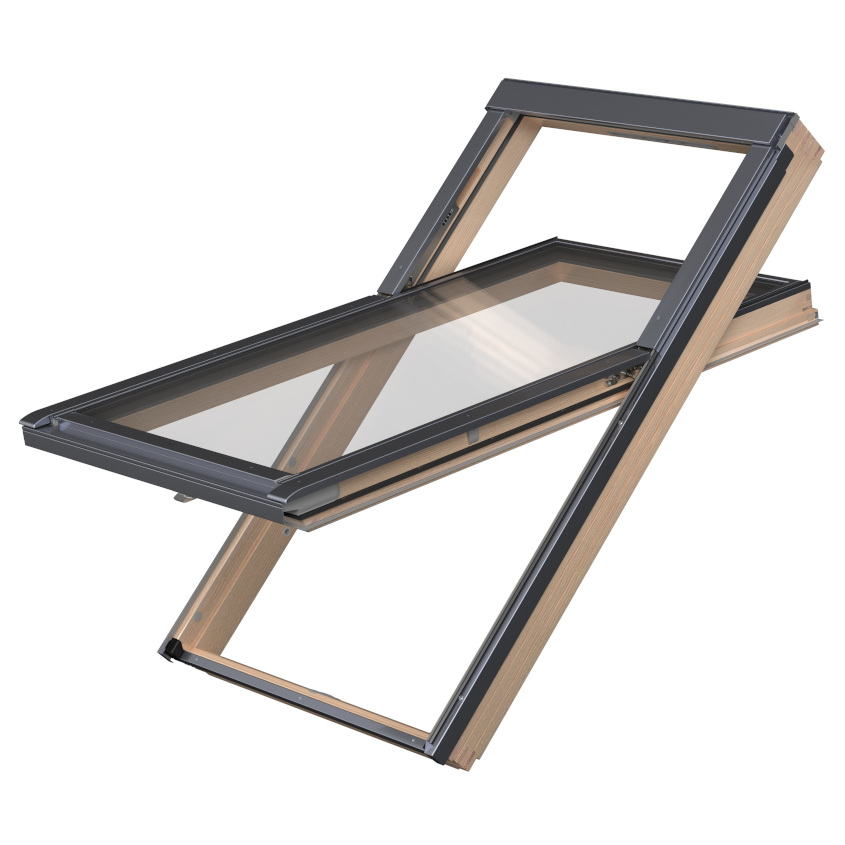

  • Richly equipped pivot window with axis of rotation situated above the centre of the window, so even a tall person can easily walk up to the window edge.
  • Easy window operation by means of the new handle situated in the base of the sash and featuring two-step micro-opening.
  • The hinge enables the sash to be rotated and left open. The sash when opened in position from 0° to 45° is supported by innovative supporting system.
  • The sash can be rotated through 160° and locked, allowing safe and convenient cleaning of the outer glass.



Windows with raised axis of rotation SAFETY AND EASE OF INSTALLATION

  • When installed in roofs with pitches 39˚- 43˚ the window meets the requirements of DIN 5034-1 standard, according to which the bottom window edge has to be placed 95 cm above the floor level and the top minimum 220 cm.



Windows with raised axis of rotation HIGH ENERGY-EFFICIENCY AND DURABILITY

  • Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
  • Quadruple sealing system. Glazing seal provides additional tightness in extreme weather conditions and reduces micro vibrations of the cladding profiles during heavy rain.



Windows with raised axis of rotation

Windows with raised axis of rotation LONG LASTING PROTECTION

  • Made of vacuum impregnated pinewood.



Windows with raised axis of rotation INCREASED SAFETY

  • Increased burglary resistance thanks to patented topSafe system.



Windows with raised axis of rotation FUNCTIONAL ACCESSORIES

  • Wide range of additional accessories.



Windows with raised axis of rotation INSTALLATION RANGE

  • 20-65˚



Windows with raised axis of rotation CLADDING COLOUR

  • Anthracite RAL 7016 – standard.
  • Grey-brown RAL 7022.
  • Black RAL 9005.



Windows with raised axis of rotation INTENDED USE

  • Recommended for buildings where particular emphasis is placed on saving thermal energy.



Window sizes

Where to buy





  • FYP-X P50 APMX


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FYP-X P50 APMX
    • 1.0 W/m²K window U-value 0.55 W/m²K glazing U-value 40 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing + multi-point opening
  • FYP-V U41 APMX


    • Highest quality pine woodmade of top quality pinewood and vacuum impregnated
    • Wood painted twice with ecological acrylic lacquercoated twice in natural colour with eco-friendly water-based varnish
    FYP-V U41 APMX
    • 1.1 W/m²K window U-value 0.60 W/m²K glazing U-value 36 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened no external glass with easy maintenance layer no internal glass laminated (safe) With air inlet. With no air inlet upon request. air inlet type twice varnishing + multi-point opening
