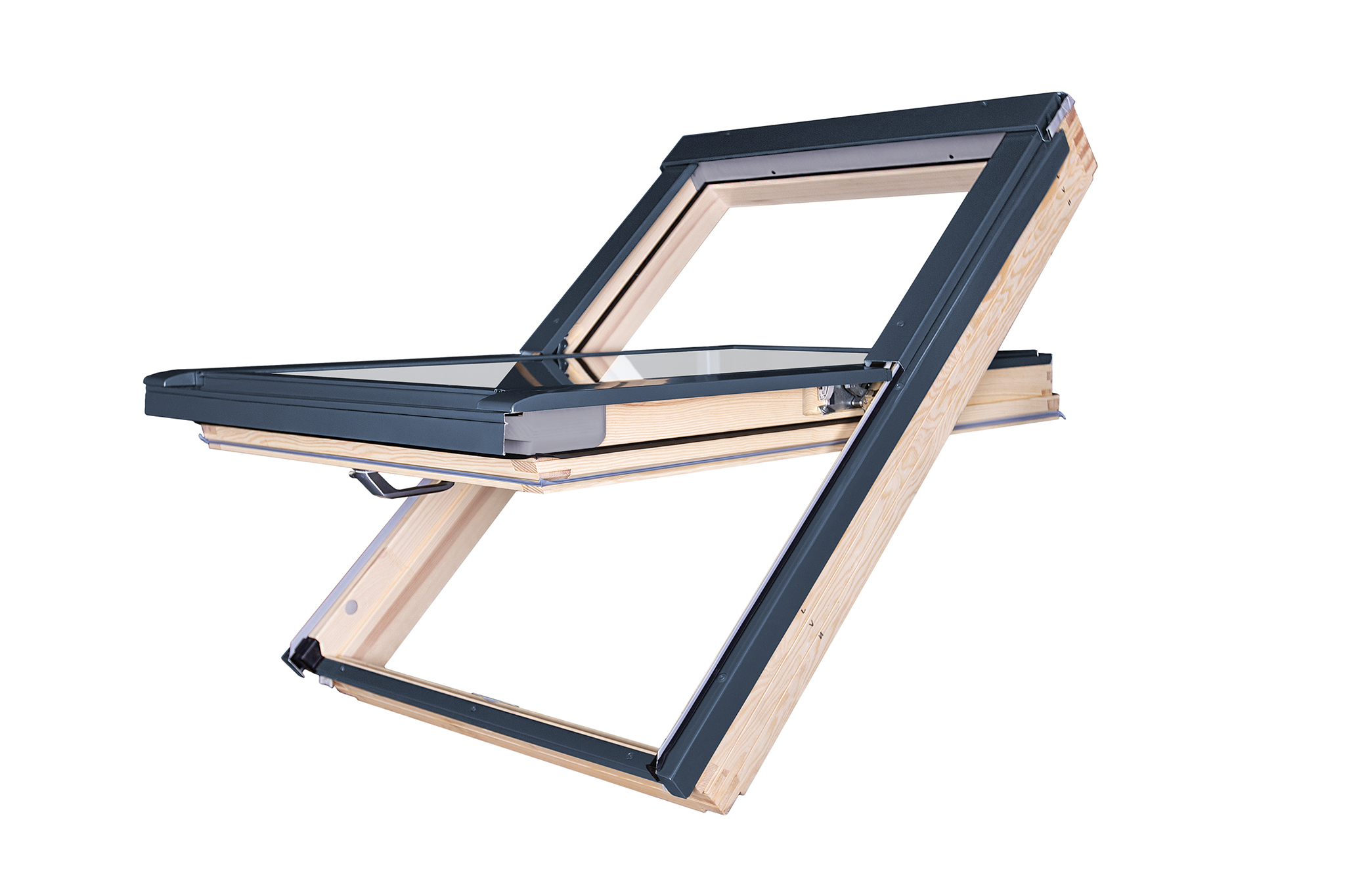

Wooden pivot windows
ENERGY-EFFICIENT DESIGN
- Popular window design with the hinge positioned in the middle of the window height.
- Easy window operation by means of the handle situated in the base of the sash and featuring two-step micro-opening.
- Manufactured using the thermoPro technology to result in increased energy-efficiency performance, greater durability, excellent tightness and easier installation process.
EASY TO KEEP CLEAN
- The sash can be rotated through 180° and locked, allowing convenient cleaning of the outer glass.
INCREASED SAFETY
- Toughened external glass with lifetime hail resistance warranty.
- Increased burglary resistance thanks to patented topSafe system.
FUNCTIONAL ACCESSORIES
- Wide range of additional accessories.
INSTALLATION RANGE
- 15-90°.
CLADDING COLOUR
- Anthracite RAL 7016 – standard.
- Grey-brown RAL 7022.
- Black RAL 9005.
INTENDED USE
- Attic rooms, particularly bedrooms, children’s rooms and living rooms.
-
FTP-X P50 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FTP-X P50 APMX
- 1.0 W/m²K || 0,90 W/m²K with Thermo flashing window U-value 0.55 W/m²K glazing U-value 40 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened + external glass with easy maintenance layer + internal glass laminated (safe) No air inlet. With air inlet upon request. air inlet type twice varnishing + multi-point opening
-
-

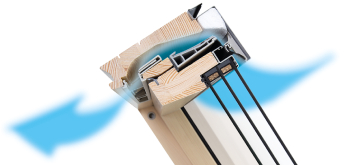

FTP-V U41 APMX
-
made of top quality pinewood and vacuum impregnated
-
coated twice in natural colour with eco-friendly water-based varnish
FTP-V U41 APMX
- 1.1 W/m²K || 1,0 W/m²K with Thermo flashing window U-value 0.60 W/m²K glazing U-value 36 dB acoustic insulation Rw Triple-glazed unit glazing unit + external glass toughened no external glass with easy maintenance layer no internal glass laminated (safe) With air inlet. With no air inlet upon request. air inlet type twice varnishing + multi-point opening
-
